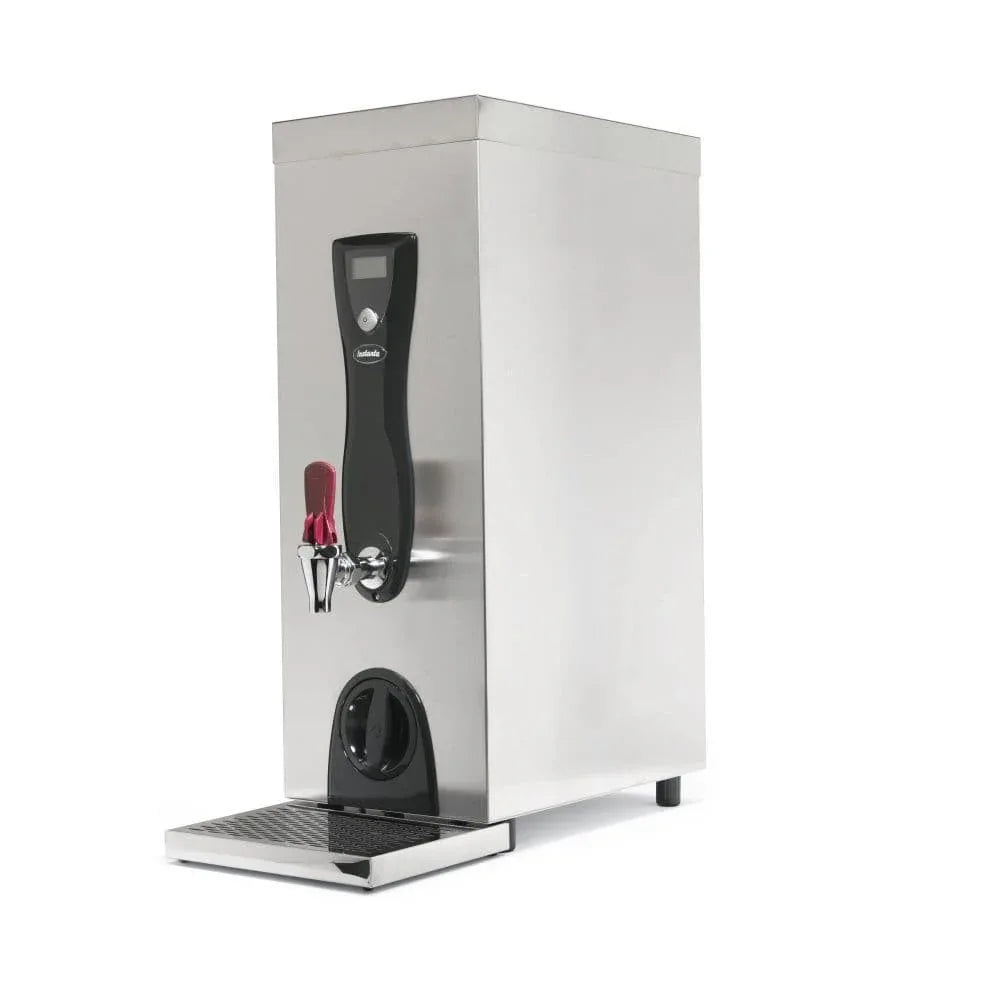

CTS19F/6 SureFlow Counter Top Boiler 19Ltr Filtered 6kW

CTS19F/6 SureFlow Counter Top Boiler 19Ltr Filtered 6kW NEW

Features and Benefits

· Basic fault self-diagnosis with LCD read out
· Built-in multi-purpose filtration
· Electronic temperature control for constant temperature at around 97°C
· Easy access for service and cleaning
· Long-life incoloy elements
· Boil dry protection
· Stainless steel drip tray included
· 57 litres per hour output

Installation
Easy to install on a stable worktop.

Plumbing
Designed for direct connection to a potable cold water supply using the 1.5 metres (3/4 BSP) hose supplied. An isolating valve should be installed between the supply and the heater. Rear supply connection and choice of rear (optional additional kit) or front overflow as standard.

Electrical
Fitted with 1.75 metres of cable.

Construction

• Brushed stainless steel case.
• Stainless steel heating chamber.
• Low voltage switching.
• Two safety cut-outs.

Filtration
Built-in, multi-purpose filtration suitable for all water types.

Height (mm) 668

Width (mm) 243

Depth (mm) 510

Rear connection clearance (mm) 50

Depth excluding drip tray (mm) 360

Tap clearance to drip tray (mm) 190

TECHNICAL DATA FOR CTS19F/6 SureFlow Counter Top Boiler 19Ltr Filtered 6kW NEW*

Power loading (kW) 6

Heat-up time (mins) 21.5

Recovery Rate (litres) 1

Stand by Power (kW/h) 0.088

Rapid Draw-Off (litres) 19

Rapid Draw-Off (cups) 114

Hourly Output (litres) 57

Hourly Output (cups) 342

* Based on 6 Cups Per Litre
