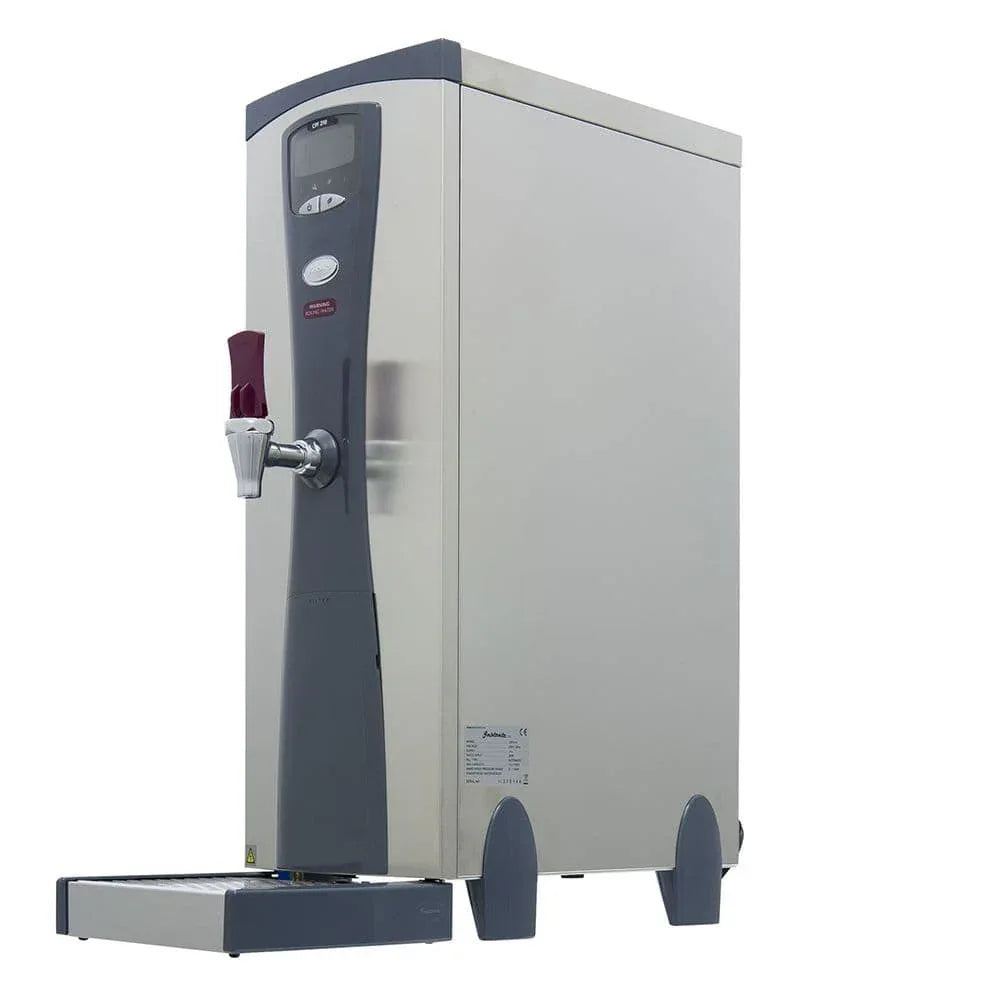

CTSP11H/4 SureFlow Plus Counter Top Boiler 11Ltr High Tap Filtered 4.5 kW

CTSP11H/4 SureFlow Plus Counter Top Boiler 11Ltr High Tap Filtered 4.5 kW

Features and Benefits
· Integral seven day programmable timer
· Built-in multi-purpose filtration
· Energy saving ECO mode
· Temperature programmable betwee 80°C - 98°C
· Two tier comprehensive diagnostics system
· Integral stainless steel drip tray included
· Programmable filter monitor from 2,000 19,500 litres

3 YEAR WARRANTY

Installation
Easy to install on a stable worktop.

Plumbing
Designed for direct connection to a potable cold water supply using the 1.5 metre (3/4 BSP) hose supplied.
An isolating valve should be installed between the supply and the heater.
Rear supply connection and choice of rear or front overflow.

Electrical
Fitted with 1.75 metres of cable and a
13amp moulded plug.

Construction
Brushed stainless steel case.
Stainless steel heating chamber.
Low voltage switching.
Two safety cut-outs.

Installation
Easy to install on a stable worktop.

Height (mm) 705

Width (mm) 260

Depth (mm) 555

Rear connection clearance (mm) 45

Tap clearance to drip tray (mm) 304

TECHNICAL DATA FOR CTSP11H/4 SureFlow Plus Counter Top Boiler 11Ltr High Tap Filtered 4.5 kW *

Power loading (kW) 4.5

Heat-up time (mins) 16

Recovery Rate (litres) 1

Rapid Draw-Off (litres) 11

Rapid Draw-Off (cups) 66

Hourly Output (litres) 57

Hourly Output (cups) 342

Stand by Loss (kW/h) 0.084

* Based on 6 Cups Per Litre
