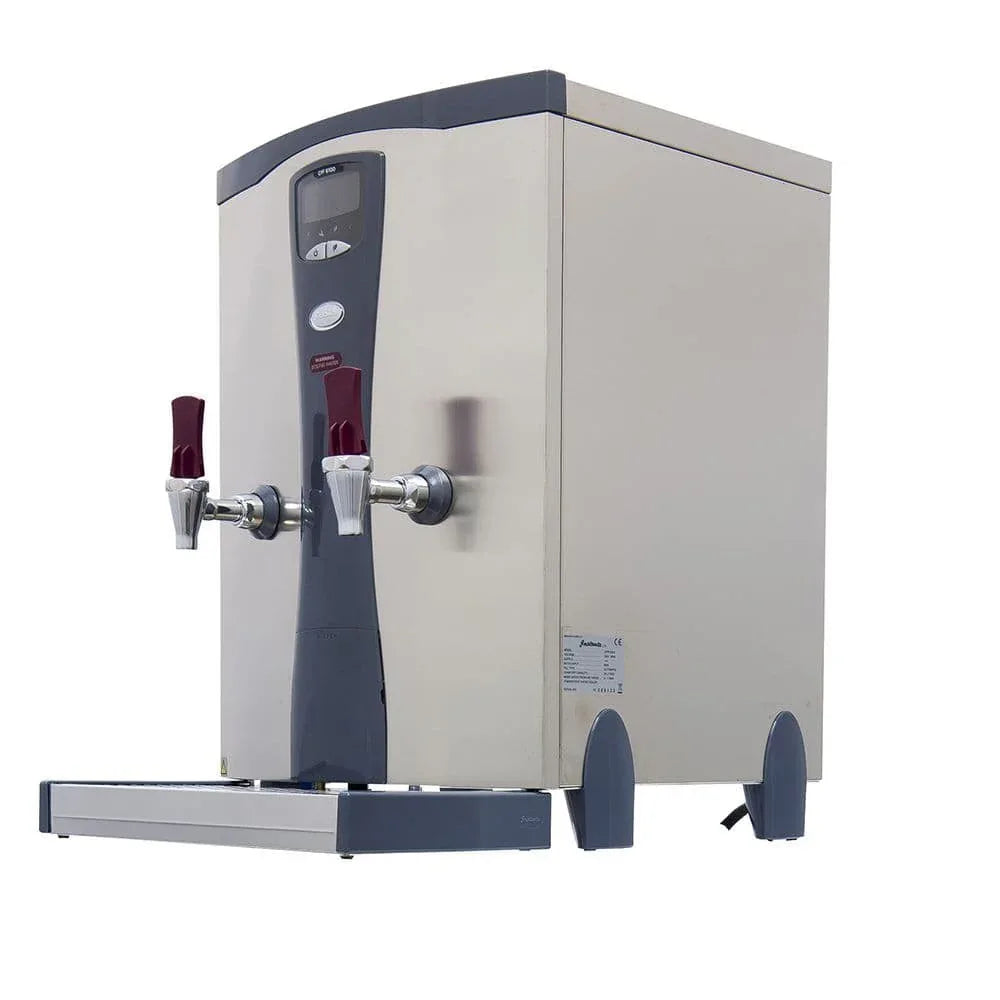

CTSP27T/6 SureFlow Plus Counter Top Boiler 27Ltr Twin Taps Filtered 6kW

CTSP27T/6 SureFlow Plus Counter Top Boiler 27Ltr Twin Taps Filtered 6kW

Features and Benefits

· Integral seven day programmable timer
· Built-in multi-purpose filtration
· Energy saving ECO mode
· Temperature programmable between 80°C - 98°C
· Two tier comprehensive diagnostics system
· Integral stainless steel drip tray included
· Programmable filter monitor from 2,000 19,500 litres

Installation
Easy to install on a stable worktop.

Plumbing
Designed for direct connection to a potable cold water supply using the 1.5 metre (3/4 BSP) hose supplied.
An isolating valve should be installed between the supply and the heater.
Rear supply connection and choice of rear or front overflow.

Electrical
Supplied with 1.6 metres of cable for connection to a 230 volt supply with a suitable break capacity of 30 amps.

Construction
Brushed stainless steel case.
Stainless steel heating chamber.
Low voltage switching.
Two safety cut-outs.

Installation
Easy to install on a stable worktop.

Height (mm) 610

Width (mm) 440

Depth (mm) 555

Rear connection clearance (mm) 45

Tap clearance to drip tray (mm) 200

TECHNICAL DATA FOR CTSP27T/6 SureFlow Plus Counter Top Boiler 27Ltr Twin Taps Filtered 6kW*

Power loading (kW) 6

Heat-up time (mins) 31

Recovery Rate (litres) 1

Rapid Draw-Off (litres) 27

Rapid Draw-Off (cups) 162

Hourly Output (litres) 57

Hourly Output (cups) 342

Stand by Loss (kW/h) 0.09
