Instanta Wall Mounted Water Boiler WA10N JD Catering Equipment Solutions Ltd

Instanta SKU: WA10N

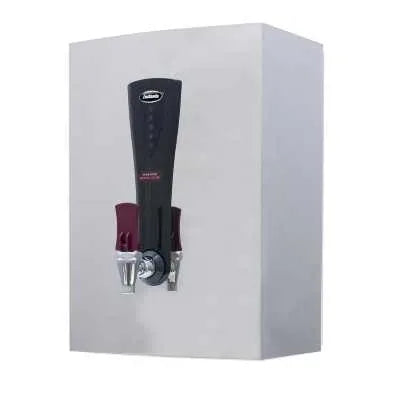

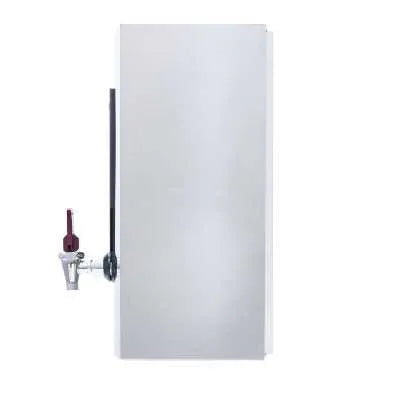

Instanta Wall Mounted Water Boiler WA10N

£685.00 £993.00 Save £308

Shipping calculated at checkout

WA10N

The WM range offers three wall mounted models with simple stainless steel cases providing a plentiful supply of boiling water. For customers who are working to a budget and want Instanta quality and reliability but with slightly lower specification.

Features and Benefits

· Introductory diagnostic system
· Three models available
· Large heavy duty non-drip taps
· Mirror finished stainless steel case
Installation
As per instruction manual supplied.
Plumbing

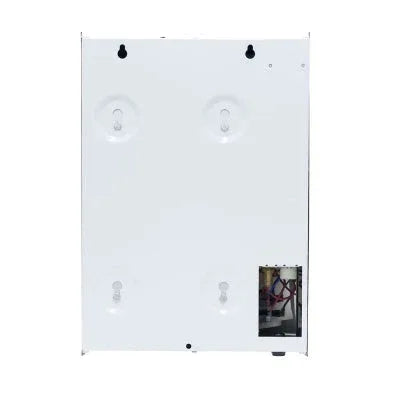

Designed for direct connection to a potable cold water supply using fittings supplied. An isolating valve should be installed between the supply and the heater. These wall mounted boilers have a rear connection and overflow and requires two bar incoming water pressure.
Electrical
To be connected to 230 volt 13 amp supply.
Construction
Polished stainless steel case.
Stainless steel heating chamber.
Low voltage switching.
Two safety cut outs.
Approvals
WRAS approved.

SPECIFICATION FOR WA10N SureFlow Wall Mounted 10Ltr Mirror Finish

Height (mm) 480
Width (mm) 340
Depth (mm) 247
Tap Depth (mm 85
Power loading (kW) 3
Heat-up time (mins) 30
Recovery Rate (litres) 0.5
Rapid Draw-Off (litres) 10
Rapid Draw-Off (cups) 60
Hourly Output (litres) 27
Hourly Output (cups) 162
Stand by Loss (kW/h) 0.1
* Based on 6 Cups Per Litre
