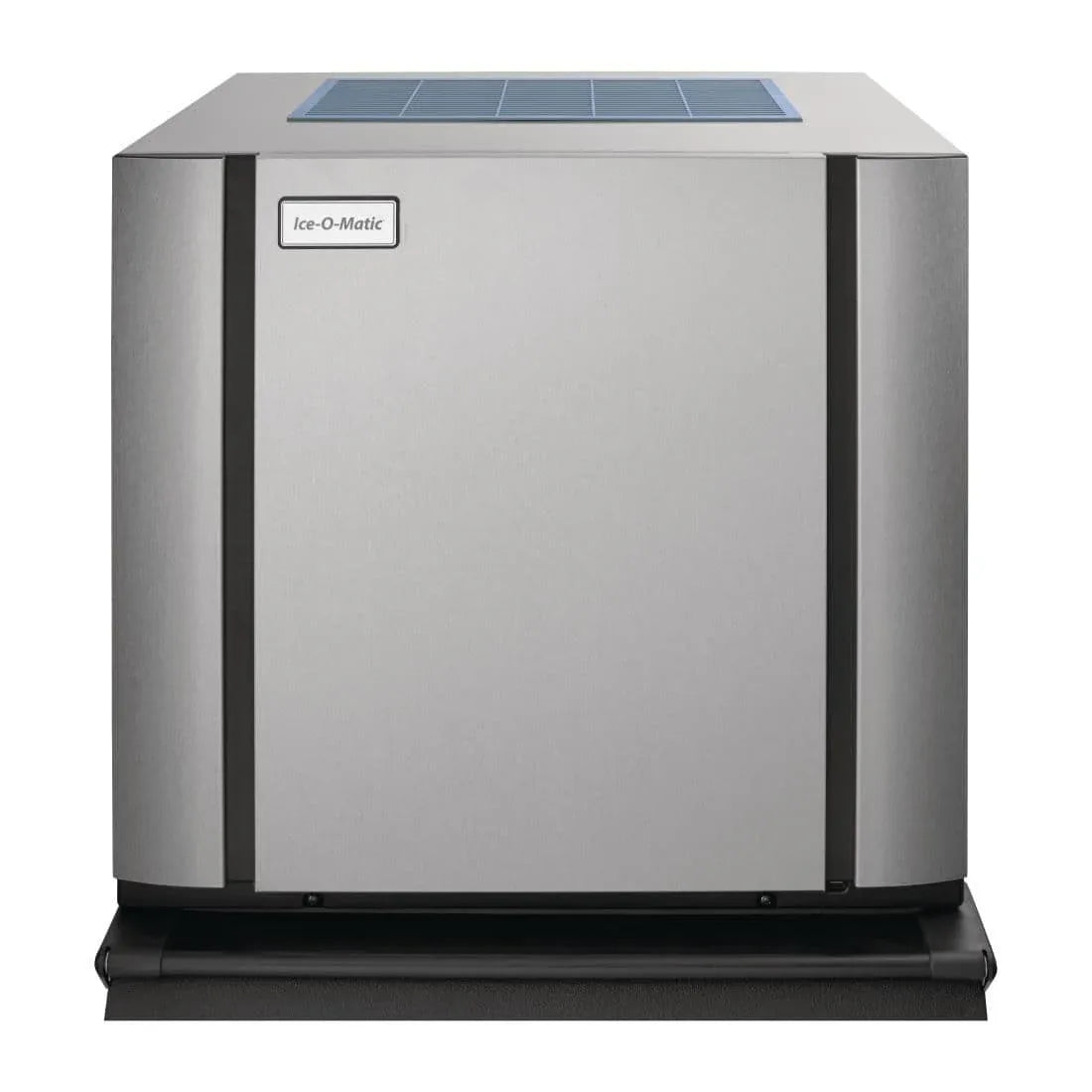

FA007 Ice-O-Matic Elevation Modular Ice Machine CIM1135FA Full Cube FA007 JD Catering Equipment Solutions Ltd

Ice-O-Matic SKU: CIM1135FA

FA007 Ice-O-Matic Elevation Modular Ice Machine CIM1135FA Full Cube FA007

£6,500.00 £11,442.00 Save £4,942

Shipping calculated at checkout

In their Denver - USA factory, Ice-O-Matic produces reliable, powerful and attractive ice machines that are used all over the world. The Ice-O-Matic CIM1135 ice machine makes up to 425kg of long lasting, high quality crystal clear ice every day. Unique feature is that this is the only ice machine that discharges the hot air from the top and from the right side, which saves you footprint and increases the installation flexibility. Main focus from Ice-O-Matic is the food safety with components in the food zone that can easily be cleaned and are even dishwasher-safe. This ice machine is available in either full-cube ice (cube size 22 x 22 x 22mm) or half-cube ice (cube size 22 x 22 x 10mm).

Modular Cube Ice Maker

CIM1135F/H

This high volume modular cube ice maker is easy to clean, easy to service, simple to operate, and environmentally responsible without sacrificing productivity.

The Elevation Series provides clean, dependable ice from an astonishingly user-friendly and energy-efficient machine designed to work as hard as you.

This Ice maker is compatible with a range of ice bins depending on your sites ice requirements.  They are available in either 'Half' or 'Full' cube options.

Key Features

'Full Cube' or 'Half Cube' Ice

This ice machine can be ordered to produce either 'Full' (CIM1135F) or 'Half' (CIM1135H) cubes.

Unique Dual Exhaust

Air-cooled machines are designed to discharge hot air from both the side and top of the unit, increasing installation flexibility and reducing the potential of obstructed exhaust.

High Volume Ice Production

Produces up to 425kg/24hr.

Energy and Environment

- Exceeds 2018 DOE (Department of Energy) regulations.
- Up to 20% more energy efficient than other models.
- Environmentally friendly, including BPA-free plastic and recyclable parts.

Sanitation

- Plastic Food Zone eliminates hard-to-clean nooks and crannies, allowing for effortless wipe down and easy, long-lasting sanitation.
- Built in Agion® ensures unbeatable antimicrobial protection.
- Smart LED light indicates machine status and when cleaning is required.

Superior Construction

Durable corrosion-resistant stainless steel on the inside and a durable stainless steel finish and industrial-grade fingerprint-proof plastic on the outside.



Benefits

Dual Exhaust

Our modular Ice makers feature ground breaking technology that allows hot-air to discharge from the side and top of the machine.  This allows flexibility on where the machine is positioned without affecting performance.

PURE ICE Built-in Antimicrobial Protection

Built-in anti-microbial protection for the life of the ice maker inhibits bacteria growth on ice maker surfaces. Ice-O-Matic's optional water filtration system provides protection against unpleasant tastes, odors, and scale formation.

Harvest Assist

Harvest Assist provides consistent ice production for the life of the ice maker while reducing energy consumption and increasing capacity.

Highly Configurable

The CIM1135 can be paired with any of the following bins B25, B40, B55, B110, B700

Tech Specs

Dimensions

Width: 768mm

Depth: 610mm

Height: 689mm

Hydraulic

Minimum allowed supply water pressure: 1.0-4.0 bar

Maximum incoming water pressure: 4.1 bar

Minimum incoming water temperature: 4.5 °C

Maximum incoming water temperature: 38°C

Electrical

Amps Required: 16A 1 Phase

Performance

Ice Cube Style: Full/Half

Net Weight: 105kg

Ice Production 10°C Water 21°C Air: 425kg/24hr

Ice Production 21°C Water 32°C Air: 374kg/24hr

Components

Condensing Unit: Optional Remote (VRC1061B)

Air Cooled Units: Yes

Integral Drain Pump: No

Please note: this is a modular ice machine - ice storage bin sold separately. If used in a hard water area, water filtration is recommended (filters sold separately).

Ice Storage Bin Options

Most Popular with this model: B25, B40, B55

Require Bin Kits to fit: B110

Upright Storage Bin: B700
