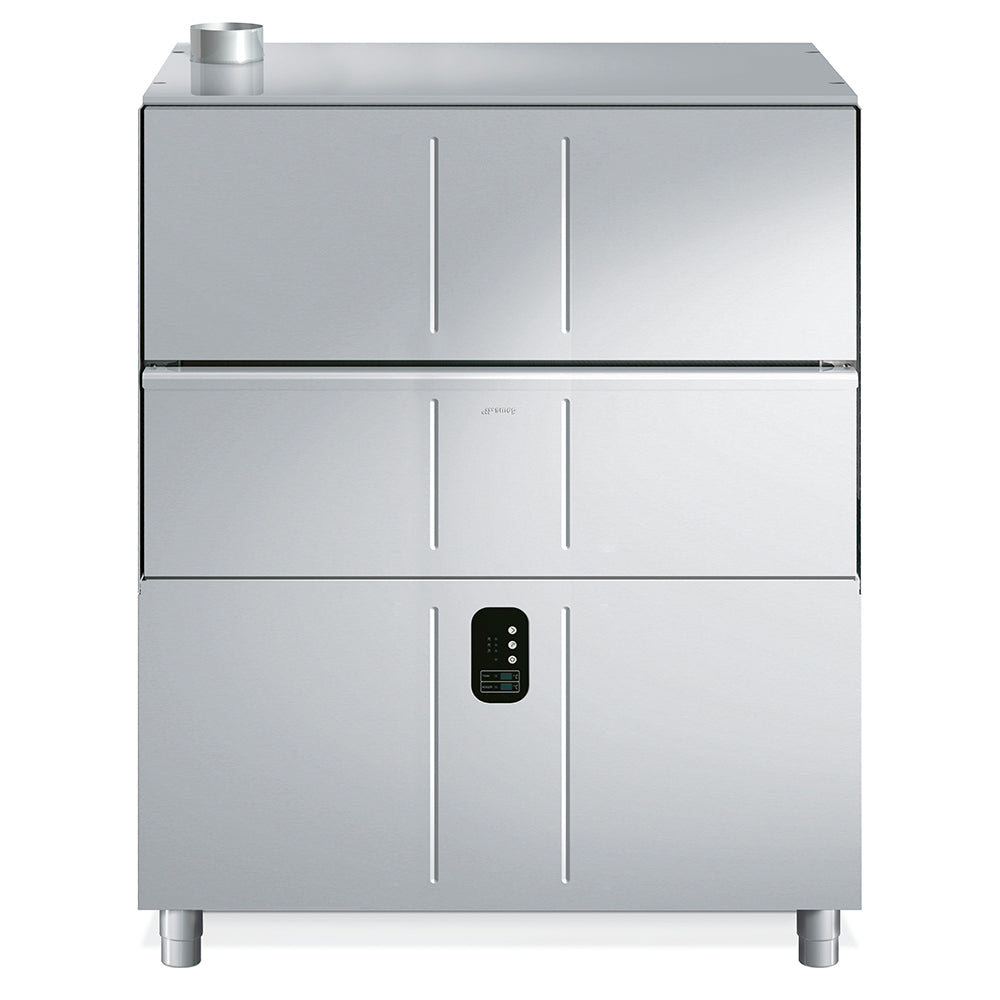

Smeg Large Sized Utensil Washer, 3 Wash Programs 600x1320 UW60132D

• Structure: Single skinned construction in AISI 304 stainless steel
• Required electrics and fuse protection: 3ph 18.6kW 32A
• Control type: Electronic soft touch controls
• WRAS compliant break tank: Yes
• Basket dimensions: 600 x 1320mm
• Baskets per hour: 30 / 15
• Number of programs: 3 wash programs: P1 120, P2 240, P3 Continuous wash
• Thermo-acoustic insulation: Door
• Rinse aid dispenser: Peristaltic pump with electronic adjustment via the control panel
• Detergent dispenser: Peristaltic pump with electronic adjustment via the control panel
• Useable loading height: 850mm
• Wash tank capacity: 130L
• Boiler capacity: 17L
• Boiler heating element: 12kW 3ph
• Wash tank heating element: 6kW
• Inlet water maximum temperature: 60°C

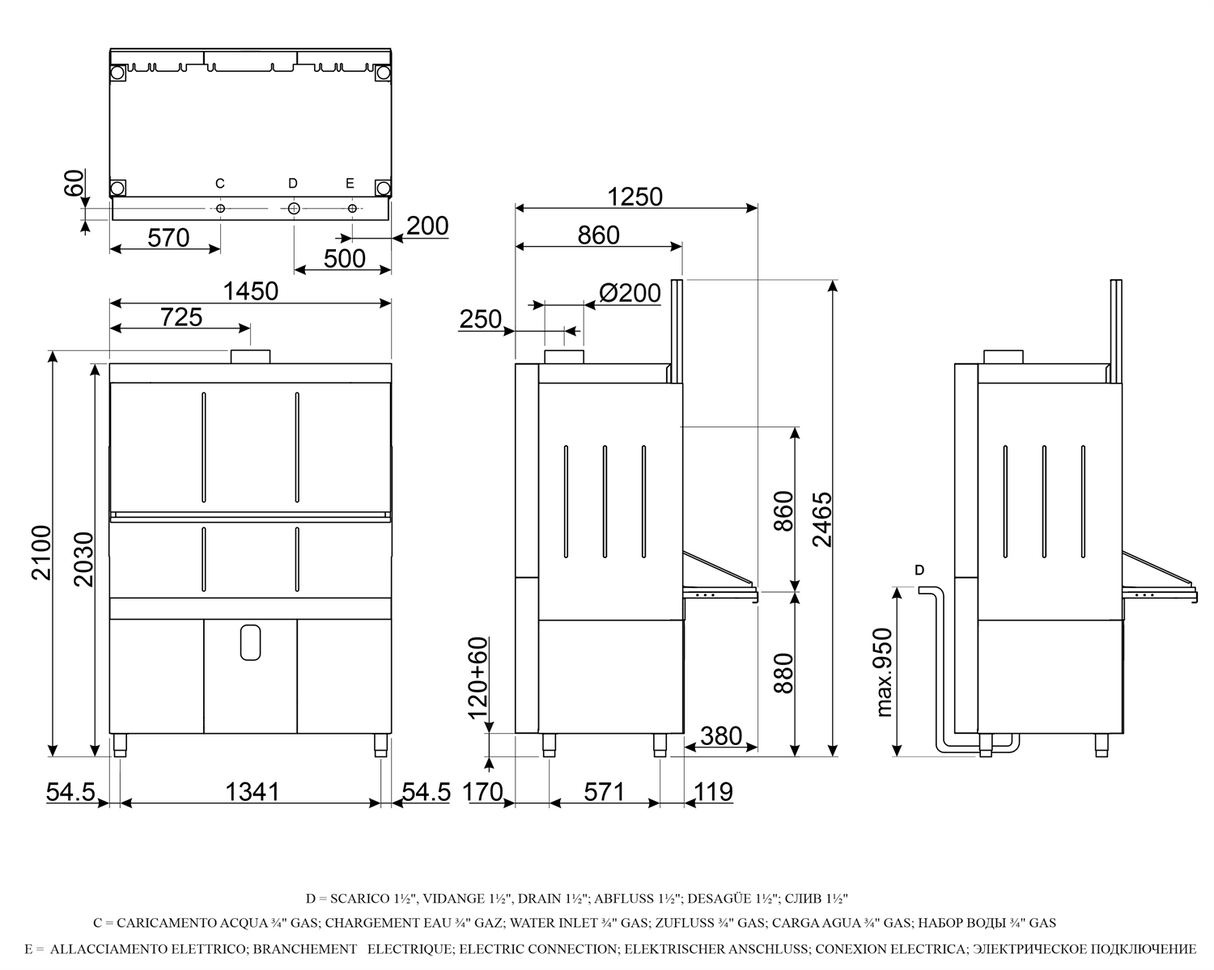

• Outside dimensions (WxDxH): 1450 x 865 x 2095/2430mm
• Power supply / Total power installed: 400V 3N 50Hz / 18.6kW
• Weight (net/gross): 315 / 350kg
• Integral continuous water softener: no
• Wash system: 3 x wash pumps (1 upper and 2 lower) with Soft Start system and delayed start
• Wash pump: 2.2kW (upper wash pump) + 2.2kW (2 x lower wash pumps)
• Rinse system: Atmospheric boiler and rinse pump (HTR system)
• Drain system: Gravity drain with drain plug
• Filtering system: Two stage filtration
• Water consumption per cycle: 7.5L
• Wash and rinse arms: 4 x wash arms + 4 x rinse arms in AISI 304 stainless steel
• Double skinned tank with rounded corners
• Thermostop for controlling the rinse water temperature
• Self-diagnosis system with fault warning
• Connection to water mains with a 3/4 threaded fitting on the back of the appliance
• Adjustable feet

NOTE

These units carry an 8 week lead-time
