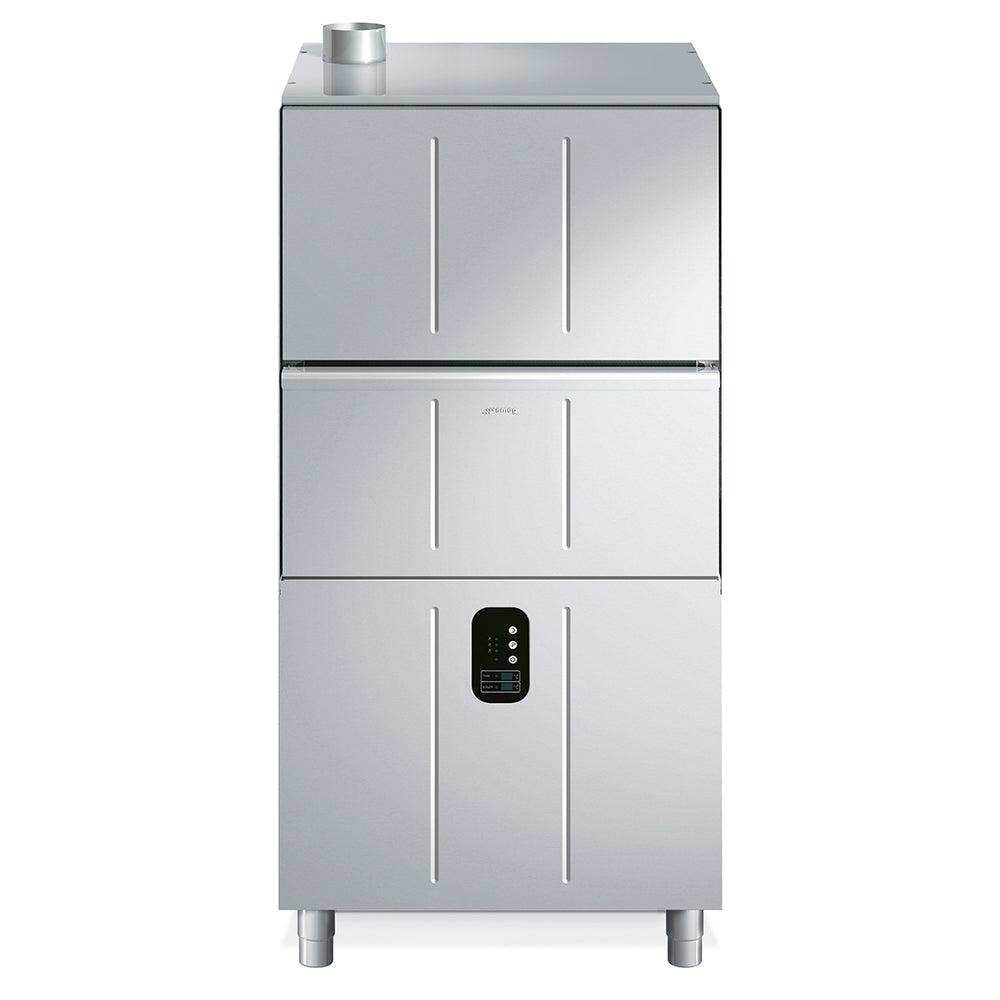

Smeg Medium Sized Utensil Washer, 3 Wash Programs 600x700 UW6070D

Smeg Medium Sized Utensil Washer, 3 Wash Programs 600x700 UW6070D

• Structure: Single skinned construction in AISI 304 stainless steel
• Required electrics and fuse protection: 3ph 12.7kW 20A
• Control type: Electronic soft touch controls
• WRAS compliant break tank: Yes
• Basket dimensions: 600 x 700mm
• Baskets per hour: 30 / 15
• Number of programs: 3 wash programs: P1 120, P2 240, P3 Continuous wash
• Thermo-acoustic insulation: Door
• Rinse aid dispenser: Peristaltic pump with electronic adjustment via the control panel
• Detergent dispenser: Peristaltic pump with electronic adjustment via the control panel
• Useable loading height: 850mm
• Wash tank capacity: 70L
• Boiler capacity: 17L
• Boiler heating element: 9kW 3ph
• Wash tank heating element: 4.5kW
• Inlet water maximum temperature: 60°C
• Outside dimensions (WxDxH): 800 x 865 x 2095/2430mm
• Power supply / Total power installed: 400V 3N 50Hz / 12.7kW
• Weight (net/gross): 210 / 250kg
• Integral continuous water softener: no
• Wash system: 2 x wash pumps with Soft Start system and delayed start
• Wash pump: 1.5kW (upper wash pump) + 2.2kW (lower wash pump)
• Rinse system: Atmospheric boiler and rinse pump (HTR system)
• Drain system: Gravity drain with drain plug
• Filtering system: Two stage filtration
• Water consumption per cycle: 6L
• Wash and rinse arms: 2 x wash arms + 2 x rinse arms in AISI 304 stainless steel + 1 x lateral wash and rinse arm
• Double skinned tank with rounded corners
• Thermostop for controlling the rinse water temperature
• Self-diagnosis system with fault warning
• Connection to water mains with a 3/4 threaded fitting on the back of the appliance
• Adjustable feet
