Smeg Ecoline range Undercounter Glasswasher, 3 Wash Programs 500x500 SPG505UK
Smeg Ecoline range Undercounter Glasswasher, 3 Wash Programs 500x500 SPG505UK is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Calculate your equipment finance costs with Kennet – see how affordable it can be!
Delivery and Shipping
Delivery and Shipping
The majority of our orders are shipped with Parcelforce.
Deliveries take place between the hours of 8am to 6pm, Monday to Friday.
Delivery is always kerbside only unless prior arrangements and agreements have been made with us in written format.On the day of the delivery the person/driver may at his/her/their discretion assist with delivering the goods to a location within the premises nominated by the customer, at the customers sole risk.For large items, delivery address’s must be accessible by an 18 ton lorry, any access restrictions need to be made clear at point of order, Failure to disclose such information may result in extra costs being incurred by a failed/aborted delivery.Deliveries will not be booked in these are classed as trade deliveries and it will be assumed the premises is open 8am - 5.30pm Monday to Friday unless prior notified, missed delivery attempts will incur a re-delivery fee. Please ensure you read our full SHIPPING POLICY
Smeg Ecoline range Undercounter Glasswasher, 3 Wash Programs 500x50...
Description
Description

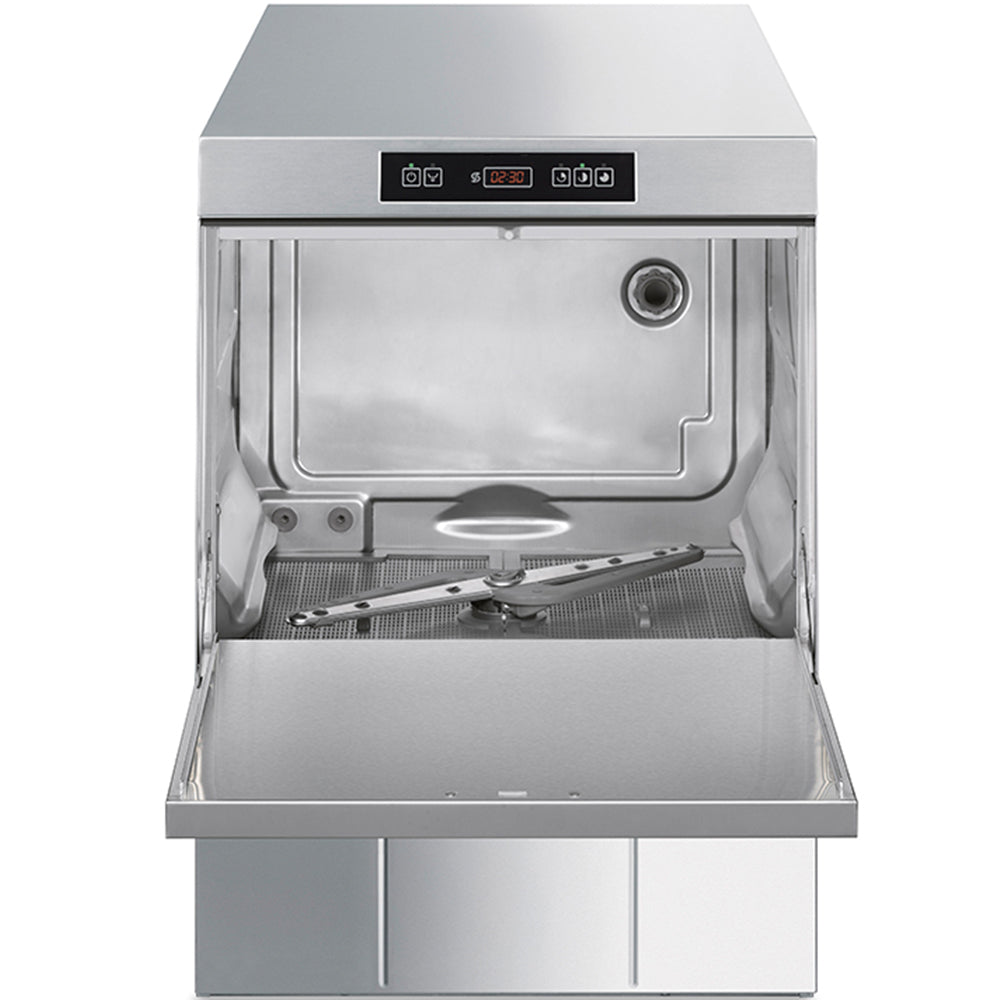

Smeg Ecoline range Undercounter Glasswasher, 3 Wash Programs 500x500 SPG505UK
The Ecoline range of glass and dishwashers are robust and reliable, giving sparkling results every wash. With easy to use soft touch controls and an unrivalled class leading Interlocking 3 stage filtration system, Ecoline is the smart, economical choice for all your warewashing requirements, whether a pub, club, restaurant, care home or hospital ward.
| Undercounter Glasswasher, 3 Wash Programs / 500x500 / 5.7kW 25A 1ph |
| Dimensions (mm) (WxDxH) |
|
580 x 600 x 820 |
| Category | Details |
|---|---|
| TYPE | |
| Product Family | Dishwasher |
| Subfamily | Undercounter glasswasher |
| Basket dimensions | 500x500 mm |
| Panel | Ecoline 2016 |
| Default power supply | 230 V~ / 30 A / 6.8 kW / 50 Hz |
| Dual Heating function | Yes |
| Usable load height | 365 mm |
| Depth with door open | 1000 mm |
| Dimensions | 578x600x814 mm |
| EAN code | 8017709330941 |
| AESTHETICS | |
| Series | Ecoline |
| Led colour | Red |
| FUNCTIONS | |
| Functions | GN 1/1 trays washing, 4-stages filter, HTR, Door clearance 365mm |
| PROGRAMMES | |
| Program specifications | Boiler 85°C/Tank 60°C-1’30"; Boiler 85°C/Tank 60°C-2’30"; Boiler 85°C/Tank 60°C-4’ |
| Drain and self cleaning cycle | Yes |
| Maximum baskets/hour | 40 |
| Maximum plates/hour | 720 |
| TECHNICAL FEATURES | |
| Tank heating element | 2000 W |
| Boiler heating element | 6100 W |
| Wash pump | 700 W |
| Default connection | 7300 W |
| Water consumption per cycle | 3.2 l |
| Water inlet pressure | 1-6 bar / 100-600 kPa |
| Warm water connection | 8°C |
| Inlet water maximum temperature | 60°C |
| Max water hardness | 12°f - 7°dH |
| Electrical Connection | |
| Electrical connection options | 230 V~ / 12 A / 2.7 kW / 50 Hz (NC); 230 V~ / 15 A / 3.4 kW / 50 Hz (NC); 230 V~ / 20 A / 4.5 kW / 50 Hz (NC); 400 V 3N~ / 12 A / 6.8 kW / 50 Hz (NC) |
| INTERFACE | |
| Display | 4 digit |
| Number of buttons | 5 |
| On/off indicator | Yes |
| Manual diagnostics | Yes |
| CONSTRUCTION | |
| Tank | With printed base |
| Construction | Partial double wall |
| Tank material | Stainless steel AISI 304 |
| Tank filter | Plastic |
| Door | Double skinned |
| Back panel | Galvanized |
| Wash arm | Stainless steel AISI 304 |
| Rinse arm | Plastic |
| Door gasket | Top only |
| Rack guides | Embossed |
| Wash tank capacity | 13 l |
| Boiler capacity | 6 l |
| Noise level | Lpa 55.5 dBA |
| Protection class | IPX4 |
| Adjustable feet | Yes |
| Drain max. height | 600 mm |
| LOGISTIC INFORMATION | |
| Packed width | 660 mm |
| Packaged depth | 700 mm |
| Height (mm) packed | 990 mm |
| Dimensions of the packed product (mm) | 990x660x700 mm |
| Gross weight (kg) | 66.000 |
| Type of packaging | Carton on pallet |
| Packaging composition - paper & cardboard (kg) | 2.978 kg |
| Packaging composition - polystyrene (kg) | 0.003 kg |
| Packaging composition - wood (kg) | 7.808 kg |
| Packaging composition - plastic (kg) | 0.182 kg |
| EQUIPMENT | |
| Drain pump | Yes |
| Peristaltic detergent pump | Yes, electronic control |
| Peristaltic rinse aid pump | Yes, electronic control |
| Chemical dosing | gr/lt |
| Detergent flow rate | 1.5 l/h |
| Rinse aid flow rate | 0.4 l/h |
| Automatic start | Yes |
| Soft Start | Yes |
| Stand-by system | Yes |
| Boiler thermostop | Yes |
| Cycle counter | Yes |
| Filter | 4-stages filter system |
| Rinse pump with H.T.R. system | Rinse pump with atmospheric boiler |
| Break tank | Yes |
| Partial water exchange in the wash tank via built-in drain pump | Yes |
| Trays washing option | GN1/1 530x325 mm |
| Detergent (red) hose length | Yes, manual |
| Rinse aid (blue) hose length | Yes, manual |
