Maidaid SKU: EVO2121-20a Barcode: 5050000000000

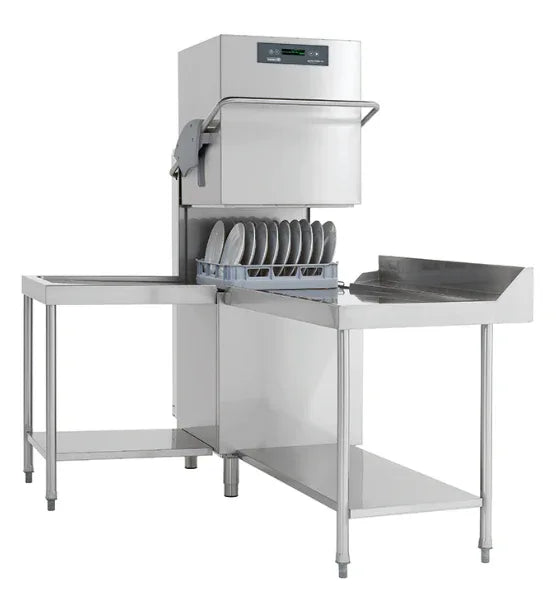

Maidaid EVO2121 Pass Through Dishwasher

£4,600.00 £8,460.00 Save £3,860

Shipping calculated at checkout

Maidaid Halcyon EVO2121 Pass through Dishwasher

  • EVO2121 pumped waste
  • Breaktank as standard
  • 500 x 500mm rack
  • Maximum useable height 440mm
  • Dimensions W640 x D755 x H1535mm
  • Height adjustable from 1535-1595mm (hood closed)
  • Height adjustable from 2050-2110mm (hood open)
  • Three standard cycle time options with further options available
  • Cycle times can be tailored to site requirements
  • Power 4.7/6.7kW
  • 20/30 Amps
  • 2 year warranty
  • Polychromatic LCD display and user interface giving uncomplicated machine status updates
  • Four button control fascia with special programmes button, operational self-diagnostics & alarms menu
  • Improved wash action from quick release parallel wash & rinse arm design
  • Stainless steel scrap tray filters supplied as standard
  • Improved triple wash tank filtration
  • Drain pump & breaktank supplied as standard
  • Three standard cycle options with an extensive range of special cycles
  • Cycle times can be tailored to site requirements
  • Reduced water consumption
  • Comprehensive automatic self cleaning at end of service
  • Selectable energy saving mode
  • Selectable thermostop ensures optimum rinse temperatures
  • Fully double skinned body & hood construction minimising both acoustic output and reduced heat-loss
  • Easy super slide hood system
  • Patented dual flow wash pump with - reducing power consumption whilst retaining wash efficiency
  • Moulded wash tank for easy cleaning
  • Accurate detergent and rinse aid peristaltic dosing pumps as standard
  • Supplied with one pegged rack, one open cup/glass rack & cutlery insert

Note Tabling not included

Evo Range Hood EVO2121
Width x Depth x Height mm 640 x 755 x 1535mm (inc feet)
Feet Height 165mm to 225mm
Basket size 500 x 500mm
Maximum useable height 440mm
Door Opening 460mm
Cycle times 70/90/120 Seconds
Water consumption per cycle 2.0 Litres
Wash tank capacity 22 Litres
Phase - Options Single/3-Phase
Power Single Phase Options 4.7kW(20Amp),6.7kW(30Amp)
Power Three Phase 6.7kW(16Amp)
Detergent pump Peristaltic - Non Timed
Rinse aid pump Peristaltic - Non Timed
Drain pump Yes
Breaktank Yes
Water supply pressure 2 to 4 Bar
Body Construction Double skin
Door/Hood Construction Double skin
Scrap Trays Yes
Internal Rinse Booster Pump Yes
Number Of Cycles 3
Total Maximum Load(as supplied) 6.7kW(30A) Single Phase
