Maidaid EVO2135WS Pass Through Dishwasher JD Catering Equipment Solutions Ltd

Maidaid SKU: EVO2135WS-20a Barcode: 5050000000000

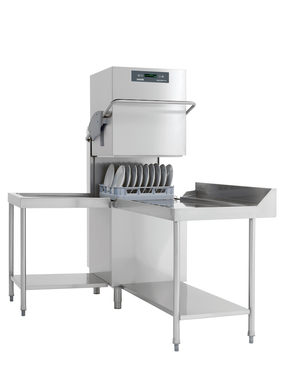

Maidaid Evolution EVO2135WS Pass Through Dishwasher

£5,000.00 £9,020.00 Save £4,020

Shipping calculated at checkout

Maidaid EVO2135WS Pass Through Dishwasher

Introducing the Maidaid EVO2135WS Pass Through Dishwasher! With a built-in softener, fitted drain pump and breaktank, and a maximum useable height of 440mm, this dishwasher offers convenience and efficiency. Customizable cycle times and adjustable height make it suitable for any site. Experience the power of 4.7/6.7kW and 20/30 Amps.

  • 2 year warranty
  • Polychromatic LCD display and user interface giving uncomplicated machine status updates
  • Four button control fascia with special programmes button, operational self-diagnostics & alarms menu
  • Improved wash action from quick release parallel wash & rinse arm design
  • Stainless steel scrap tray filters supplied as standard
  • Improved triple wash tank filtration
  • Increased range of water hardness settings
  • Internal continuous water softener as standard
  • Drain pump & breaktank supplied as standard
  • Three standard cycle options with an extensive range of special cycles
  • Cycle times can be tailored to site requirements
  • Reduced water consumption
  • Comprehensive automatic self cleaning at end of service
  • Selectable energy saving mode
  • Selectable thermostop ensures optimum rinse temperatures
  • Fully double skinned body & hood construction minimising both acoustic output and reduced heat-loss
  • Easy super slide hood system
  • Patented dual flow wash pump - reducing power consumption whilst retaining wash efficiency
  • Moulded wash tank for easy cleaning
  • Accurate detergent and rinse aid peristaltic dosing pumps as standard
  • Supplied with one pegged rack, one open cup/glass rack & cutlery insert
Evo Range Hood EVO2135WS
Width x Depth x Height mm 640 x 755 x 1535mm (inc feet)
Feet Height 165mm to 225mm
Basket size 500 x 500mm
Maximum useable height 440mm
Door Opening 460mm
Cycle times 70/90/120 Seconds
Water consumption per cycle 2.0 Litres
Wash tank capacity 22 Litres
Phase - Options Single/3-Phase
Power – Single Phase Options 4.7kW(20Amp),6.7kW(30Amp)
Power – Three Phase 6.7kW(16Amp)
Detergent pump Peristaltic - Non Timed
Rinse aid pump Peristaltic - Non Timed
Drain pump Yes
Breaktank Yes
Water supply pressure 2 to 4 Bar
Body Construction Double skin
Door/Hood Construction Double skin
Scrap Trays Yes
Internal Rinse Booster Pump Yes
Number Of Cycles 3
Total Maximum Load(as supplied) 6.7kW(30A) – Single Phase
