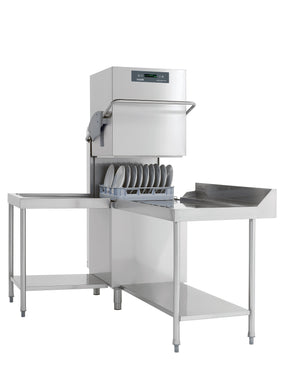

Maidaid EVO3135WS Pass Through Dishwasher
- EVO3135WS 3 phase machine
- Internal softener as standard
- Powerful boiler element allowing for rapid recovery
- Fitted drain pump & breaktank as standard
- 500 x 500mm rack
- Maximum useable height 440mm
- Dimensions W640 x D755 x H1535mm
- Height adjustable from 1535-1595mm (hood closed)
- Height adjustable from 2050-2110mm (hood open)
- Three standard cycle time options with further options available
- Cycle times can be tailored to site requirements
- Power 10.2kW
- 20 Amps - 3 phase only
- 2 year warranty
- 3 phase 500 x 500mm rack machine with continuous internal water softener and powerful boiler element allowing for rapid recovery
- Polychromatic LCD display and user interface giving uncomplicated machine status updates
- Four button control fascia with special programmes button, operational self-diagnostics & alarms menu
- Improved wash action from quick release triple wash and rinse arm design
- Stainless steel scrap tray filters supplied as standard
- Improved triple wash tank filtration
- Increased range of water hardness settings
- Drain pump & breaktank supplied as standard
- Three standard cycle options with an extensive range of special cycles
- Cycle times can be tailored to site requirements
- Reduced water consumption
- Comprehensive automatic self cleaning at end of service
- Selectable energy saving mode
- Selectable thermostop ensures optimum rinse temperatures
- Fully double skinned body & hood construction minimising both acoustic output and reduced heat-loss
- Easy super slide hood system
- Patented dual flow wash pump with - reducing power consumption whilst retaining wash efficiency
- Moulded wash tank for easy cleaning
- Accurate detergent and rinse aid peristaltic dosing pumps as standard
- Supplied with one pegged rack, one open cup/glass rack & cutlery insert
| Evo Range Hood | EVO3135WS |
|---|---|
| Width x Depth x Height mm | 640 x 755 x 1535mm (inc feet) |
| Feet Height | 165mm to 225mm |
| Basket size | 500 x 500mm |
| Maximum useable height | 440mm |
| Door Opening | 460mm |
| Cycle times | 70/90/120 Seconds |
| Water consumption per cycle | 2.0 Litres |
| Wash tank capacity | 22 Litres |
| Phase - Options | 3-Phase only |
| Power Single Phase Options | N/A |
| Power Three Phase | 10.2kW(20Amp) |
| Detergent pump | Peristaltic - Non Timed |
| Rinse aid pump | Peristaltic - Non Timed |
| Drain pump | Yes |
| Breaktank | Yes |
| Water supply pressure | 2 to 4 Bar |
| Body Construction | Double skin |
| Door/Hood Construction | Double skin |
| Scrap Trays | Yes |
| Internal Rinse Booster Pump | Yes |
| Number Of Cycles | 3 |
| Total Maximum Load(as supplied) | 10.2kW(20A) 3 Phase |
