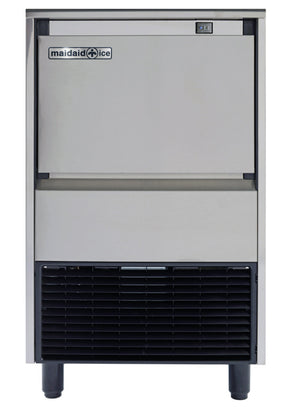

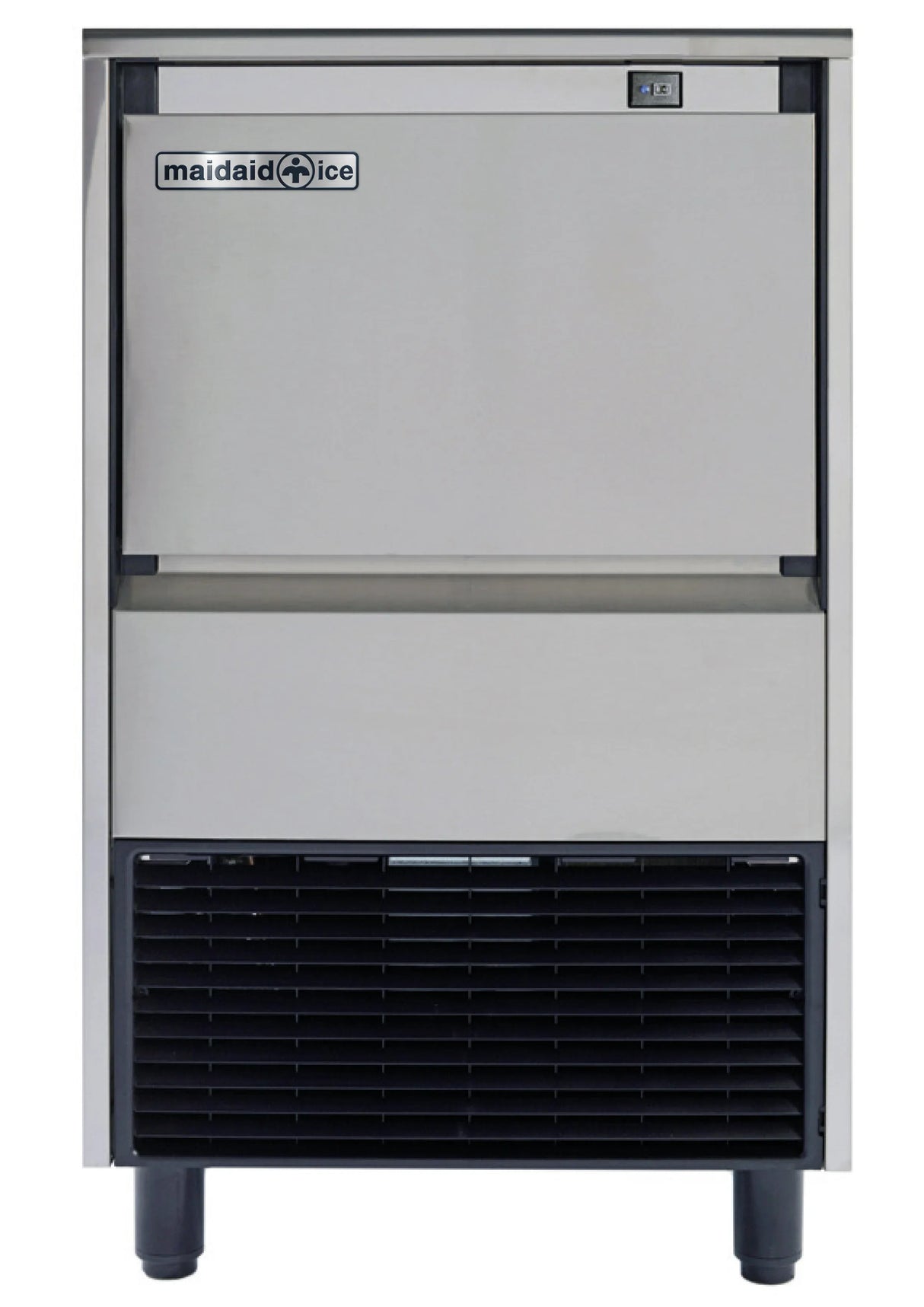

Maidaid Ice Machine CUBE 80-35DP

Maidaid Ice Machine CUBE 80-35DP

• W 715 x D 595 x H 1040mm
• Fitted drain pump
• Production (24 hours) 75kg
• Bin Capacity 35kg
• Standard Cube size 22g
• R290 Environmental Friendly Gas
• Drain height 239 (+50)
• Water consumption (air cooled) 10.5 L/Kg
• 230V, Single phase, 13 amp
• Require water supply pressure between 1 and 6 bar
• 2 year warranty
• Supplied with internally fitted drain pump as standard
• Strong door opening system. Door made in stainless steel AISI 304
• STIF: Stainless steel Fabrication. Solid structure supported in 4 columns. AISI 304 stainless steel body
• Environmentally friendly R290 Gas which reduces energy consumption
• Smart front ventilation system
• “Never Stop” motor pump, designed without deal to prevent deterioration
• Anti-scale spray system. The patented spray system with flexible jets avoids limescale deposits with small vibrations
• Cleaning switch aids general servicing & maintenance
• All panels can be disassembled separately which allows easy access from service and installation
• Electronic control that enhances the machine performance
• On/Off lighted rocker switch / PCB mounted at the bottom
• Height adjustable legs from 105mm to 155mm
• Supplied with 13 amp moulded plug and cable
• Capable of operating in ambient temperature of 10 to 43 degrees
• Supply water temperature between 5 and 38 degrees

• Halcyon	ICE 130
  Width x Depth x Height mm(Inc.Feet)	715 x 595 x 1040mm
  Production in kg over 24hours#	75kg
  Storage capacity	35kg
  Cooling system	Air
  Ice type	Cube
  Cube size	22g
  Refrigerant	R290
  Power voltage/phase/Hz	230 / 1 / 50
  Power watts / Amps	680W (13A)
  Water consumption L/Kg	10.5
  Water supply pressure	1 - 6 Bar
  Ambient temperature	10ºC / 43ºC
  Water supply temperature	5ºC / 38ºC
  Bin type	Incorporated
  Weight nett / gross Kg	70kg
