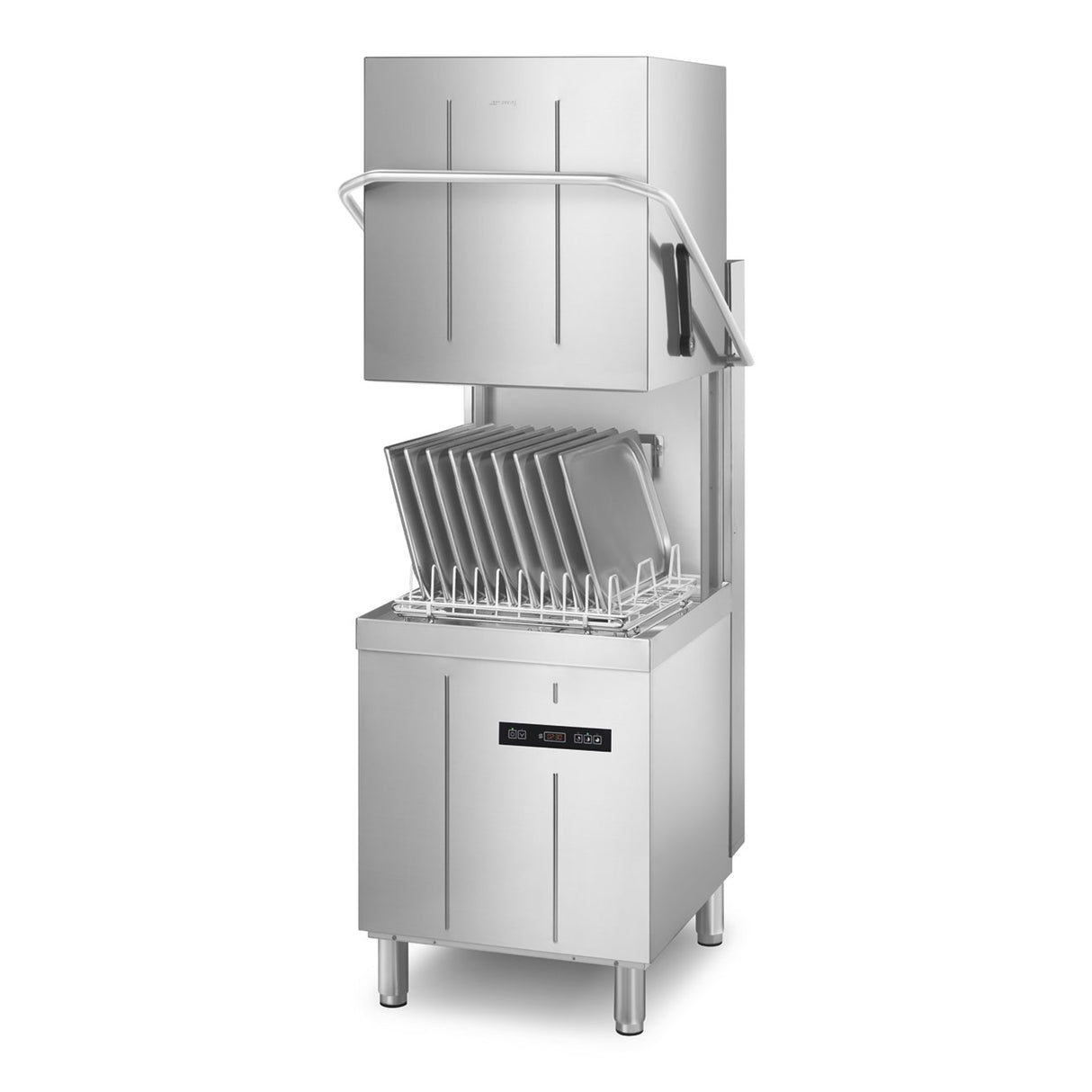

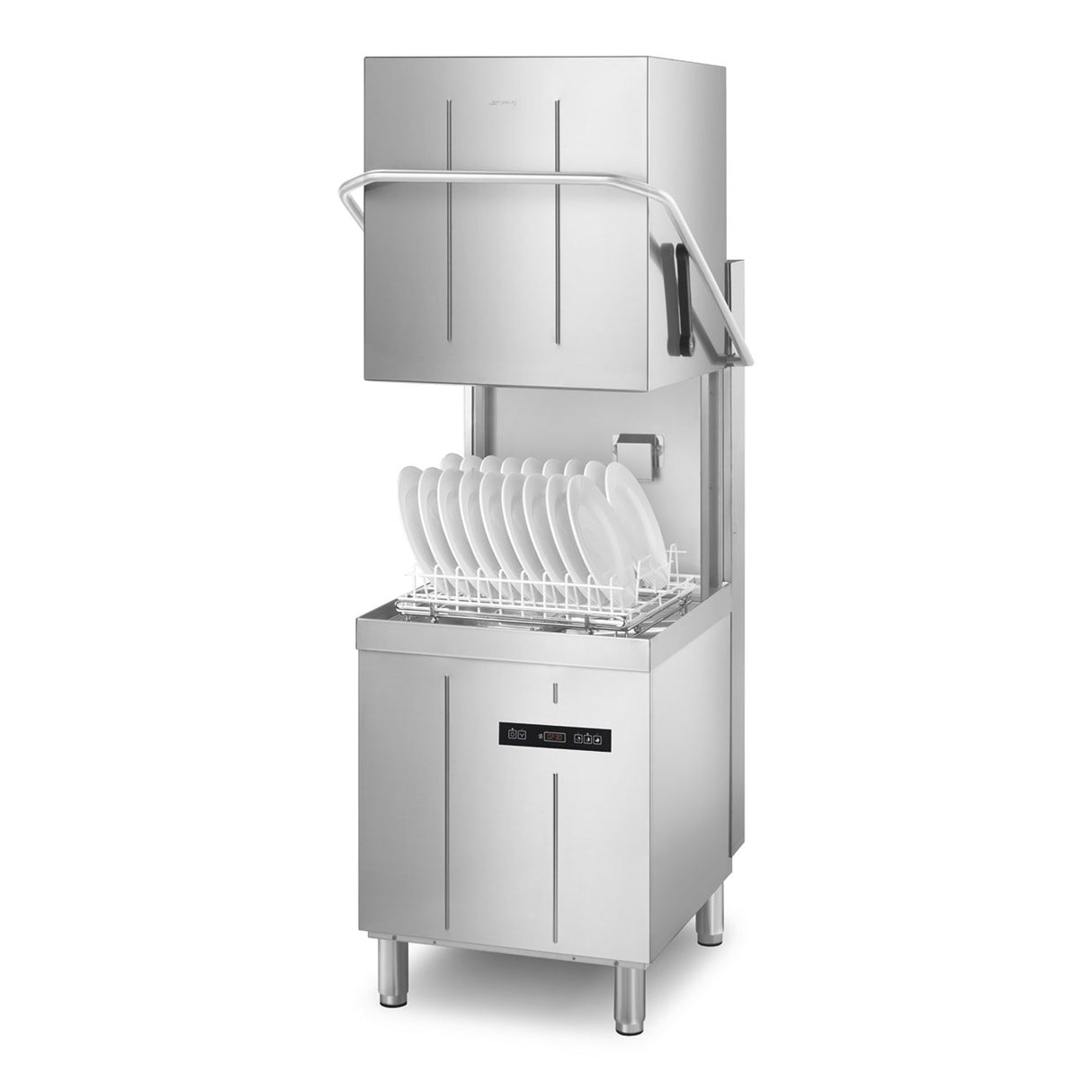

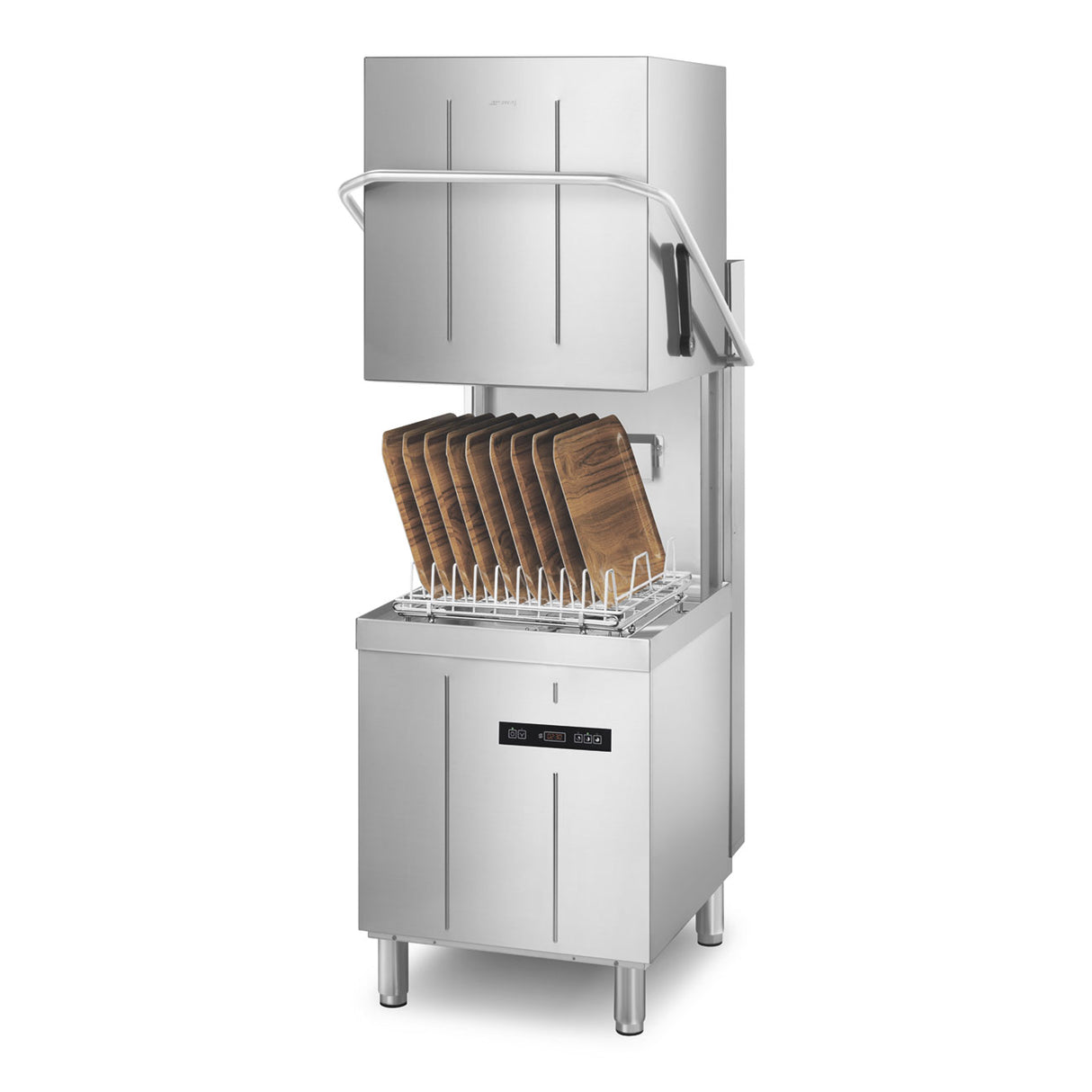

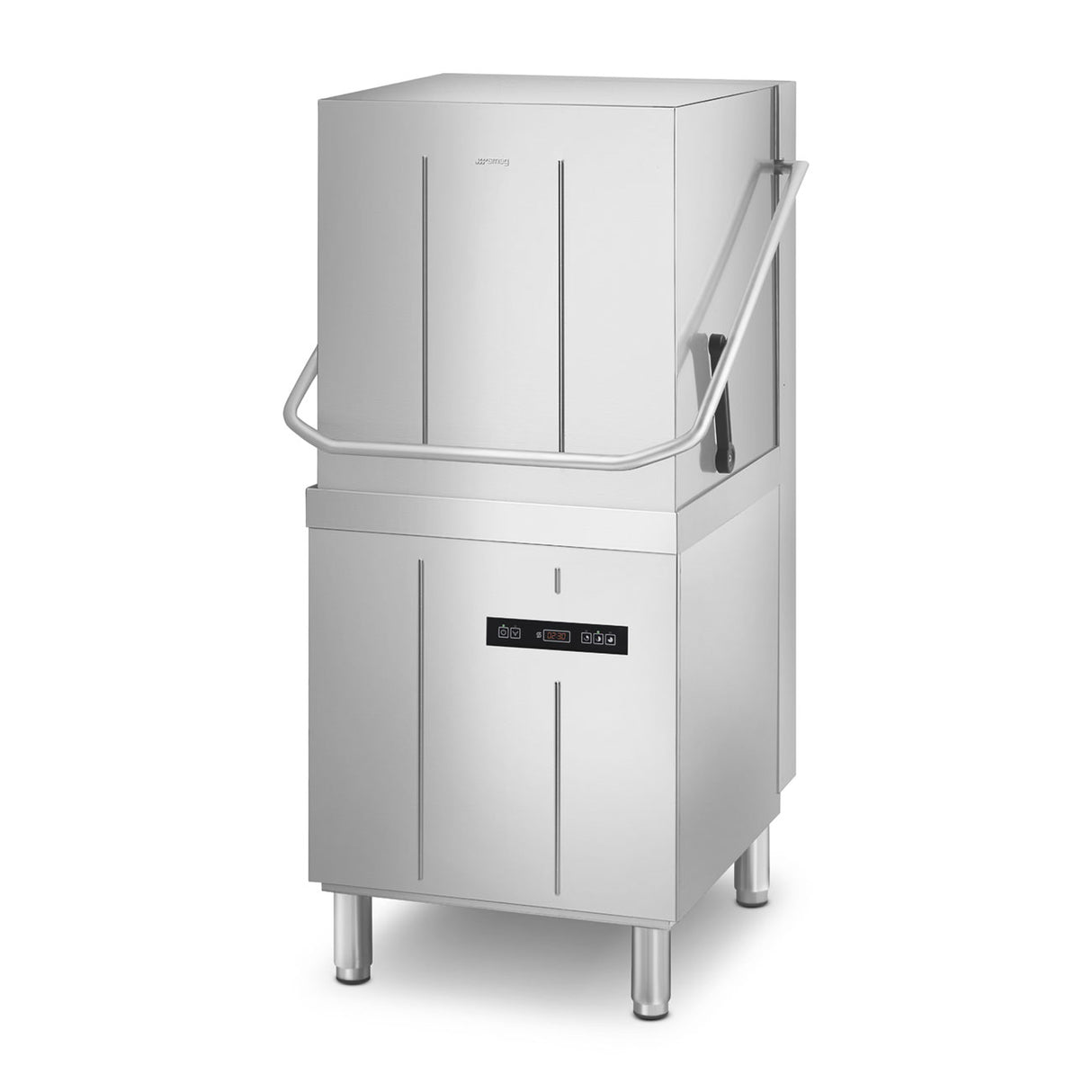

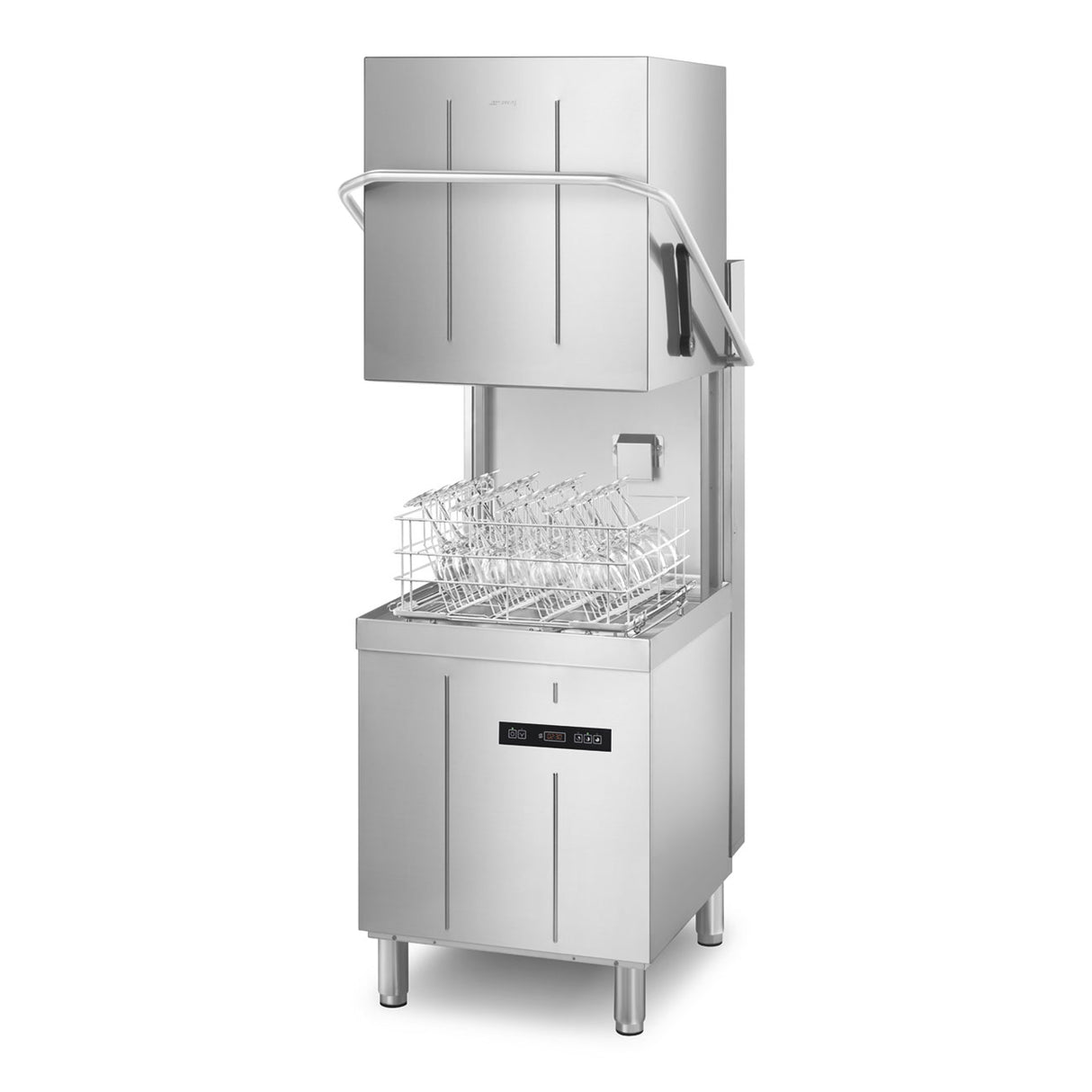

Smeg Ecoline range Hood Type Dishwasher, 3 Wash Programs 500x500 SPH505
The Ecoline range of hood type dishwashers are robust and reliable, giving sparkling results every wash. With easy-to-use soft touch controls and and dynamic 3 stage filtration system, Ecoline is the smart, economical choice for all your warewashing requirments, whether for commercial or public sector kitchens.
Extended 3-year warranty for Public Sector sites email for enquiries
| Category | Details |
|---|---|
| Product Family | Dishwasher |
| Subfamily | Hoodtype dishwasher |
| Series | Ecoline |
| Basket Dimensions | 500x500 mm |
| Default Power Supply | 400 V 3N~ / 16 A / 9.7 kW / 50 Hz |
| Simultaneous Heating | Yes |
| Width | 635 mm |
| Depth | 750 mm |
| Height | 1510 mm |
| Maximum Height with Hood Open | 2102 mm |
| Usable Load Height | 470 mm |
| Functions | GN 1/1 trays washing, Triple filter, HTR, Door clearance 470 mm |
| Programs | Boiler 85°C/Tank 60°C-1’30"; Boiler 85°C/Tank 60°C-2’30"; Boiler 85°C/Tank 60°C-4’ |
| Drain and Self-Cleaning Cycle | Yes |
| Maximum Baskets/Hour | 40 |
| Maximum Plates/Hour | 720 |
| Panel | Ecoline 2016 |
| Display | 4 digit |
| Number of Buttons | 5 |
| On/Off Indicator | Yes |
| Cycle Progress Indicator | Yes |
| End of Cycle Indicator | Yes |
| Manual Diagnostics | Yes |
| Tank Construction | Deep drawn, Double skinned |
| Tank Material | Stainless steel AISI 304 |
| Tank Filter | Stainless steel |
| Back Panel | Galvanised |
| Wash Arm | Stainless steel AISI 304 |
| Rinse Arm | Stainless steel AISI 304 |
| Hood | Single skinned |
| Wash Tank Capacity | 14 l |
| Boiler Capacity | 8 l |
| Protection Class | IPX4 |
| Adjustable Feet | 95 mm |
| Drain Max. Height | 1000 mm |
| Tank Heating Element | 2200 W |
| Boiler Heating Element | 9000 W |
| Wash Pump | 700 W |
| Default Connection | 9700 W |
| Electrical Connection Options | 230 V 3~ / 28 A / 9.7 kW / 50 Hz; 230 V~ / 16 A / 3.7 kW / 50 Hz (NC); 230 V~ / 29 A / 6.7 kW / 50 Hz |
| Water Consumption per Cycle | 2.7 l |
| Water Inlet Pressure | 1-6 bar / 100-600 kPa |
| Warm Water Connection | Cold 15°C |
| Inlet Water Maximum Temperature | 60°C |
| Max Water Hardness | 12°fH - 7°dH |
| Dimensions | 635x750x1510 mm |
| Detergent (Red) Hose Length | Yes, manual |
| Peristaltic Detergent Pump | Yes, electronic control |
| Detergent Flow Rate | 1.5 l/h |
| Peristaltic Rinse Aid Pump | Yes, electronic control |
| Rinse Aid (Blue) Hose Length | Yes, manual |
| Soft Start | Yes |
| Rinse Aid Flow Rate | 0.4 l/h |
| Boiler Thermostop | Yes |
| Cycle Counter | Yes |
| Chemical Dosing | gr/lt |
| Drain Pump with 3-Stage Filter System | Yes |
| Rinse Pump with H.T.R. System | Rinse pump with atmospheric boiler |
| Break Tank | Yes |
| Partial Water Exchange in the Wash Tank via Built-In Drain Pump | Yes |
| Automatic Start | Yes |
| 1/1GN Tray Washing Option | Yes |
