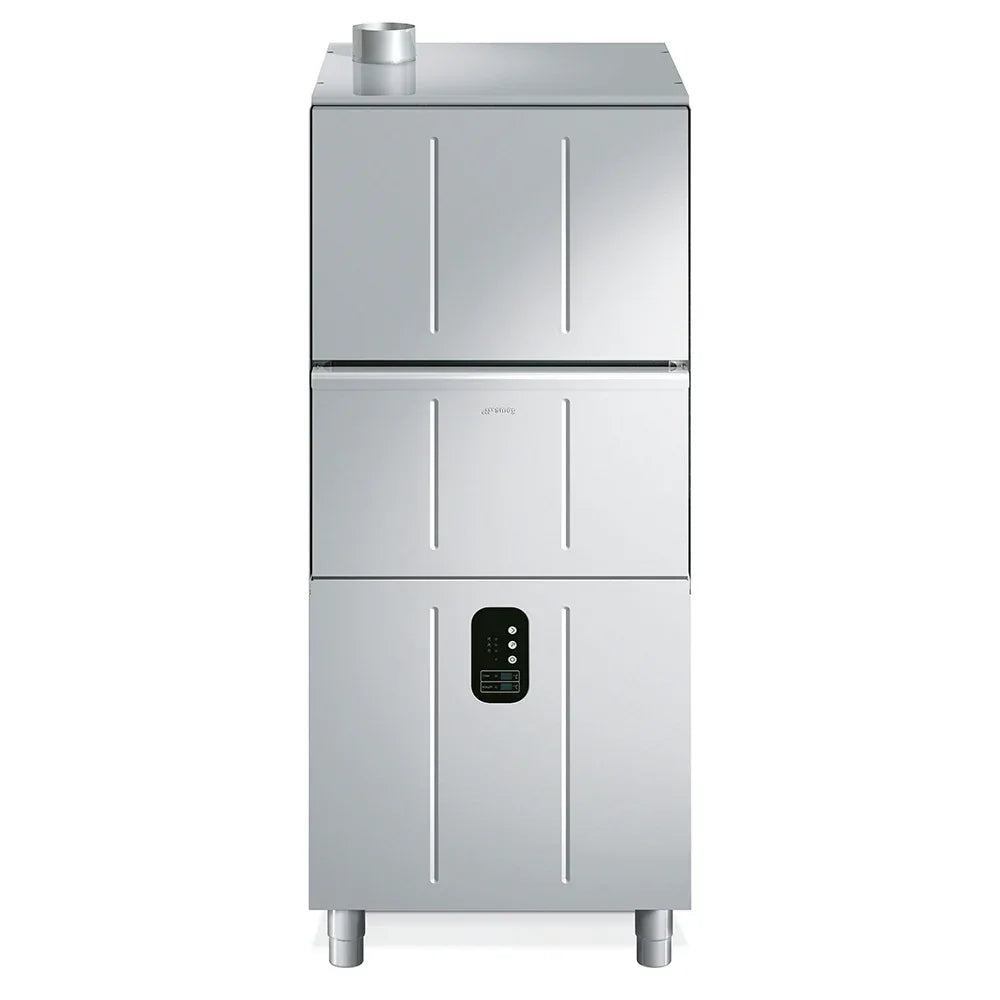

Smeg Small Sized Utensil Washer, 3 Wash Programs 570x570 UW5757D

Smeg SKU: UW5757D Barcode: 5050000000000

Smeg Small Sized Utensil Washer, 3 Wash Programs 570x570 UW5757D

£5,200.00 £10,462.00 Save £5,262

Shipping calculated at checkout

Smeg Small Sized Utensil Washer, 3 Wash Programs 570x570 UW5757D

Smeg professional glass and dishwashers, the natural evolution of over 40 years of experience in designing and producing dishwashers, are built entirely in Italy and dedicated to bars, restaurants and any commercial environment. Featuring a high technology wash system, which reduces consumption while boosting hygiene, quality and performance, all combined with unmistakable Smeg style. Models in the range include glasswashers, front-loading dishwashers and hood type dishwashers, each designed with attention to detail and all with virtually silent operation.

TYPE

Product Family: Dishwasher
Subfamily: Utensil dishwasher
Series: Utensil dishwasher
Basket dimensions: 570x570 mm
Default power supply: 400 V 3N~ / 9,1 kW / 50 Hz
Width: 685 mm
Depth: 750 mm
Height: 1725 mm
Height with door open: 2000 mm
Depth with door open: 1110 mm
Usable load height: 650 mm
Maximum height with no-basket washing: 650 mm

AESTHETICS

Led colour: Red

FUNCTIONS

SUITABLE FOR EURONORM TRAY Suitable for 1/1GN trays HTR rinsing system ...

Functions: Euronorm trays washing, GN 1/1 trays washing, HTR, Door clearance 640mm

PROGRAMMES

Utensil washer programs:1- 120" (92" at 60°C - rinse 18" at 85°C); 2- 240" (212" at 60°C - 10" dripping pause - rinse 18" at 85°C); 3- Endless at 60°C - 10" dripping pause - rinse 18" at 85°C
Maximum baskets/hour:30

INTERFACE

Panel: Utensil Dishwasher
Display: 4 digit
Number of buttons: 3
On/off indicator: Yes

CONSTRUCTION

Tank: With printed base
Tank material: Stainless steel AISI 304
Tank filter: Stainless steel
Door: Double skinned
Back panel: Galvanized
Wash arm: Stainless steel AISI 304
Rinse arm: Stainless steel AISI 304
Rack guides: Welded
Wash tank capacity: 36 l
Boiler capacity: 12 l
Protection class: IPX4
Adjustable feet: 130 mm
Drain max. height: 230 mm

CONSUMPTION AND CONNECTIONS

Tank heating element: 4500 W
Boiler heating element: 7500 W
Default connection: 9100 W
UW washing pump: 1600W
Electrical connection options: 230 V 3N~ / 9,1 kW / 50 Hz
Water consumption per cycle: 5 l
Warm water connection: Cold 15°C
Inlet water maximum temperature: 60°C
Max water hardness: 12°fH - 7°dH

LOGISTIC INFORMATION

Dimensions: 685 x 750 x 1725 mm

EQUIPMENT

Detergent (red) hose length: Yes, manual
Peristaltic detergent pump: Yes, electronic control
Detergent flow rate: 1.5 l/h
Peristaltic rinse aid pump: Yes, electronic control
Rinse aid (blue) hose length: Yes, manual
Soft Start: Yes
Rinse aid flow rate: 0.4 l/h
Boiler thermostop : Yes
Rinse pump with H.T.R. system: Rinse pump with atmospheric boiler
Break tank: Yes
1/1GN tray washing option: Yes
