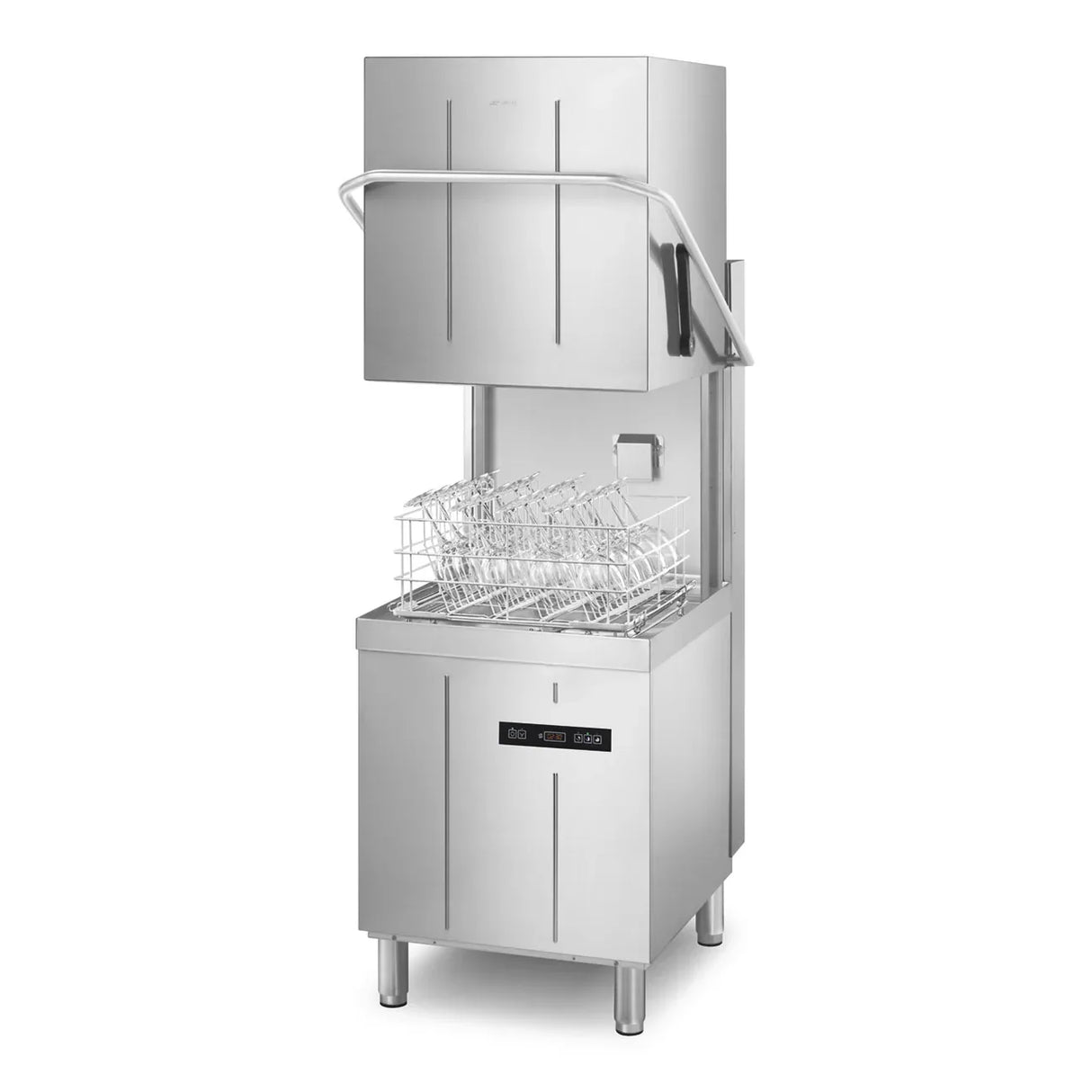

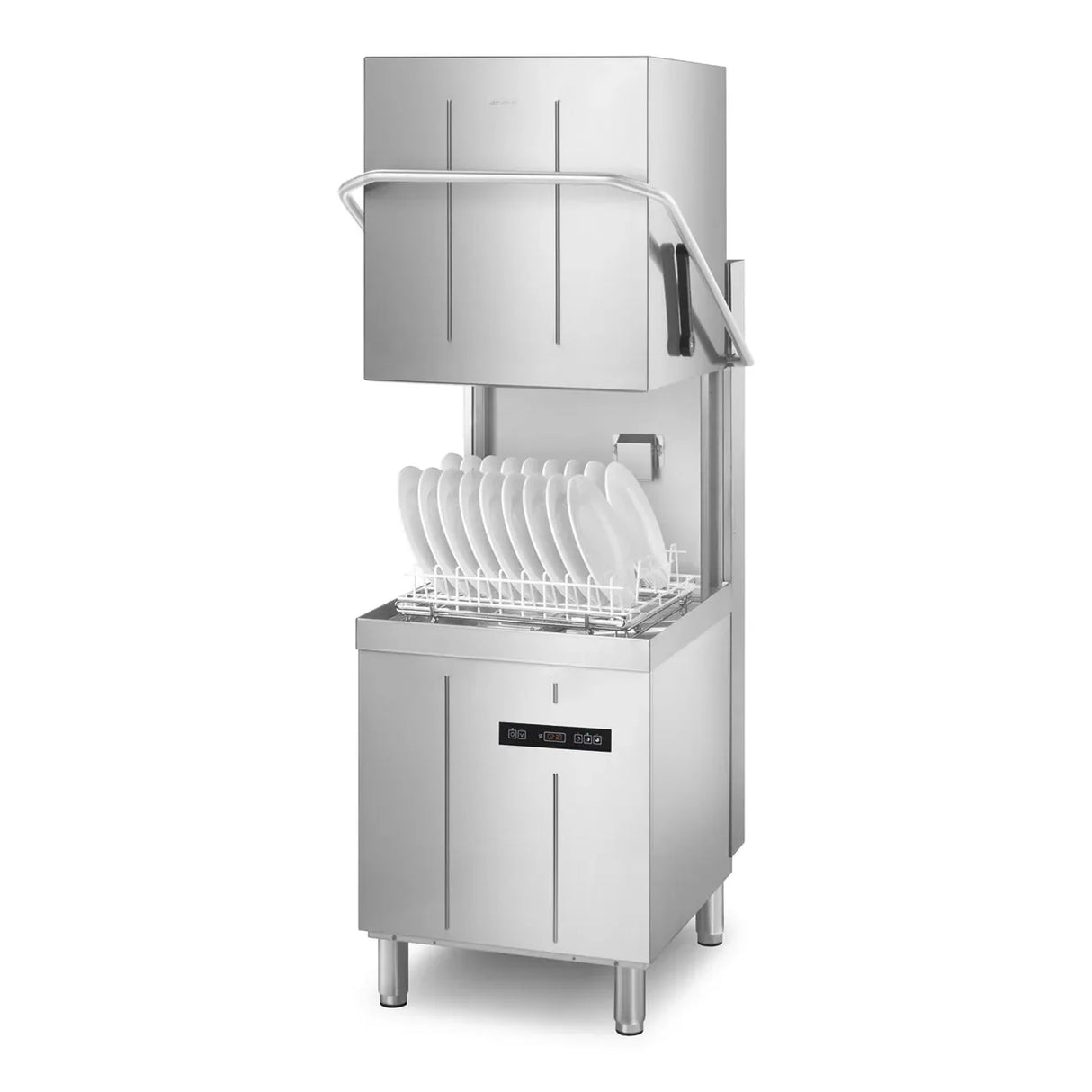

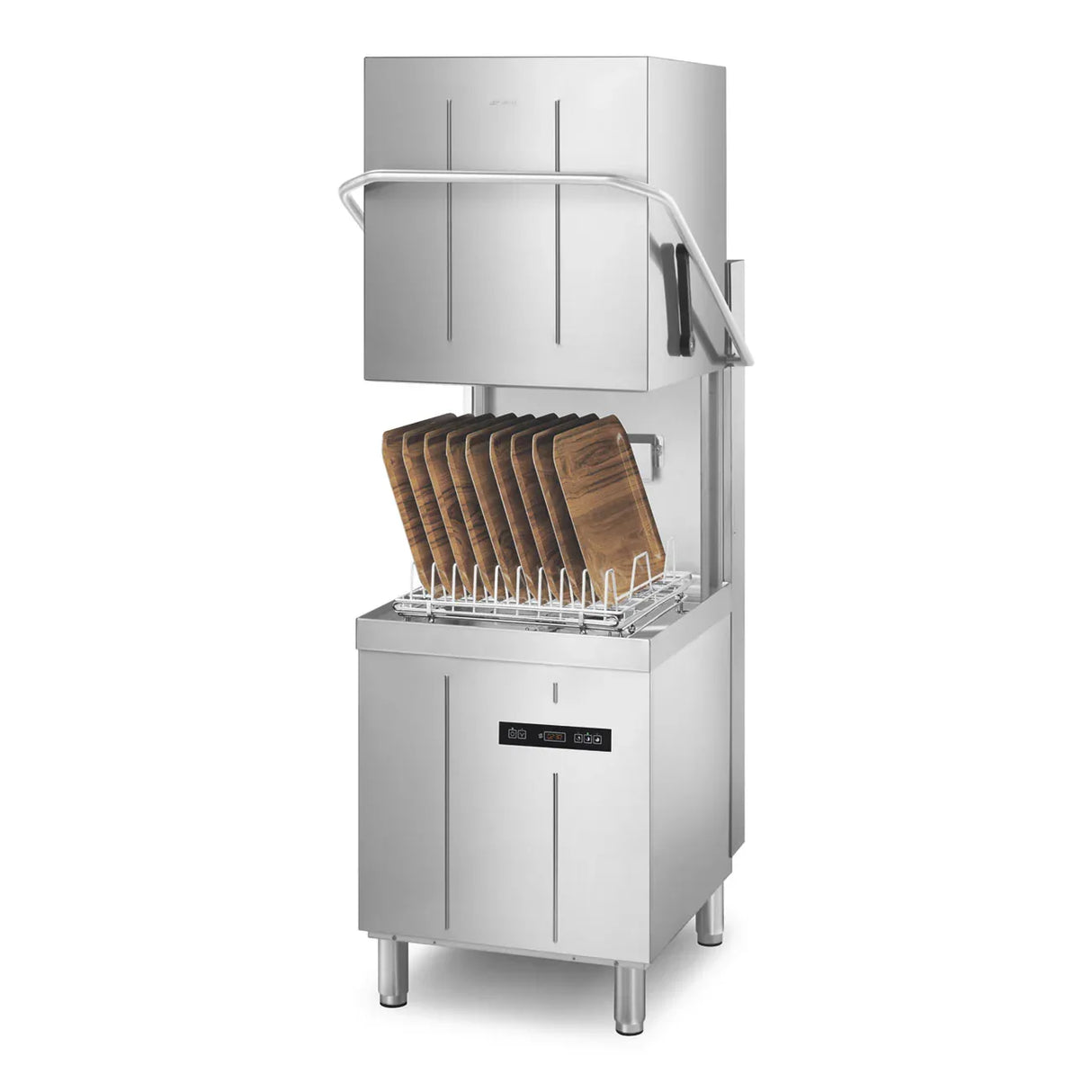

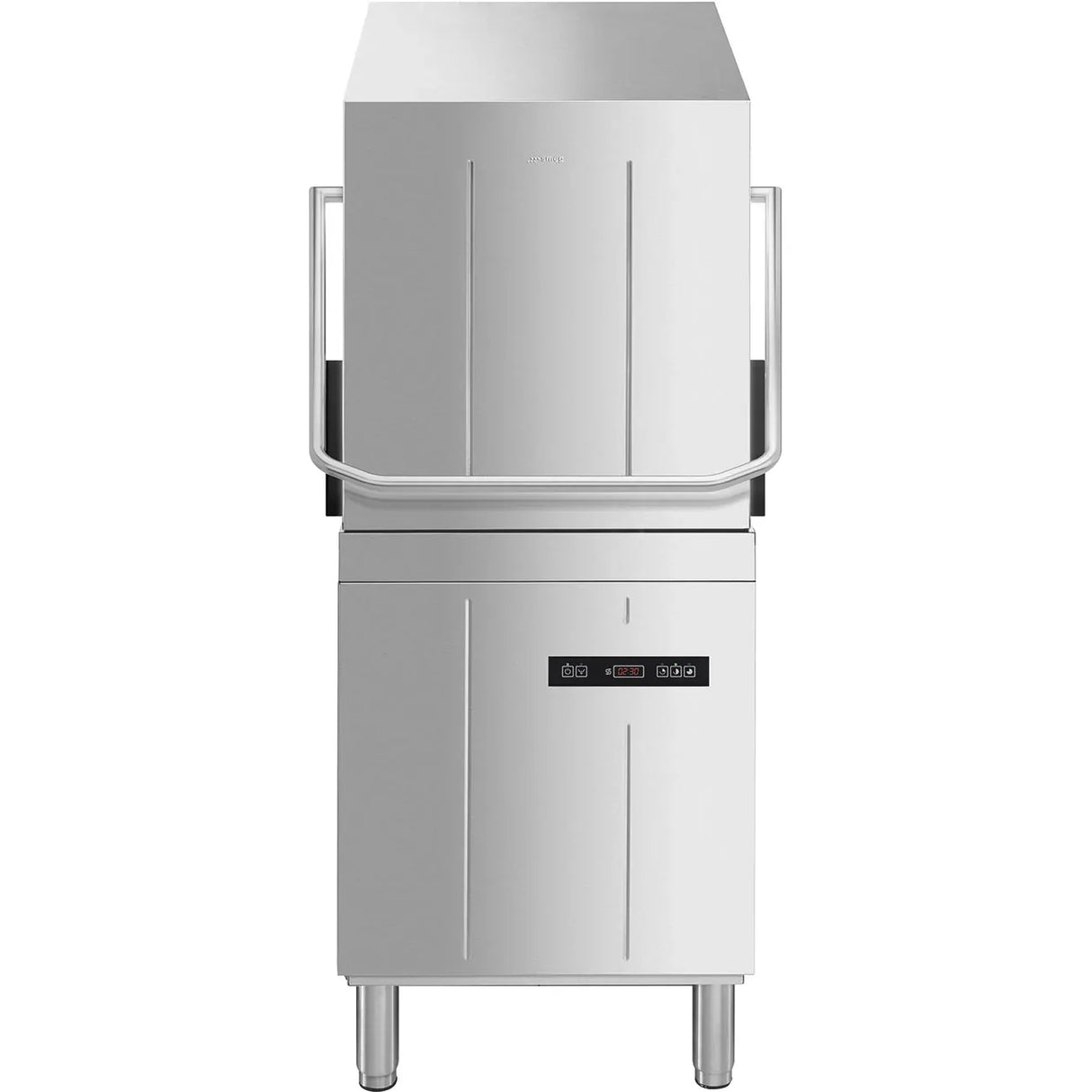

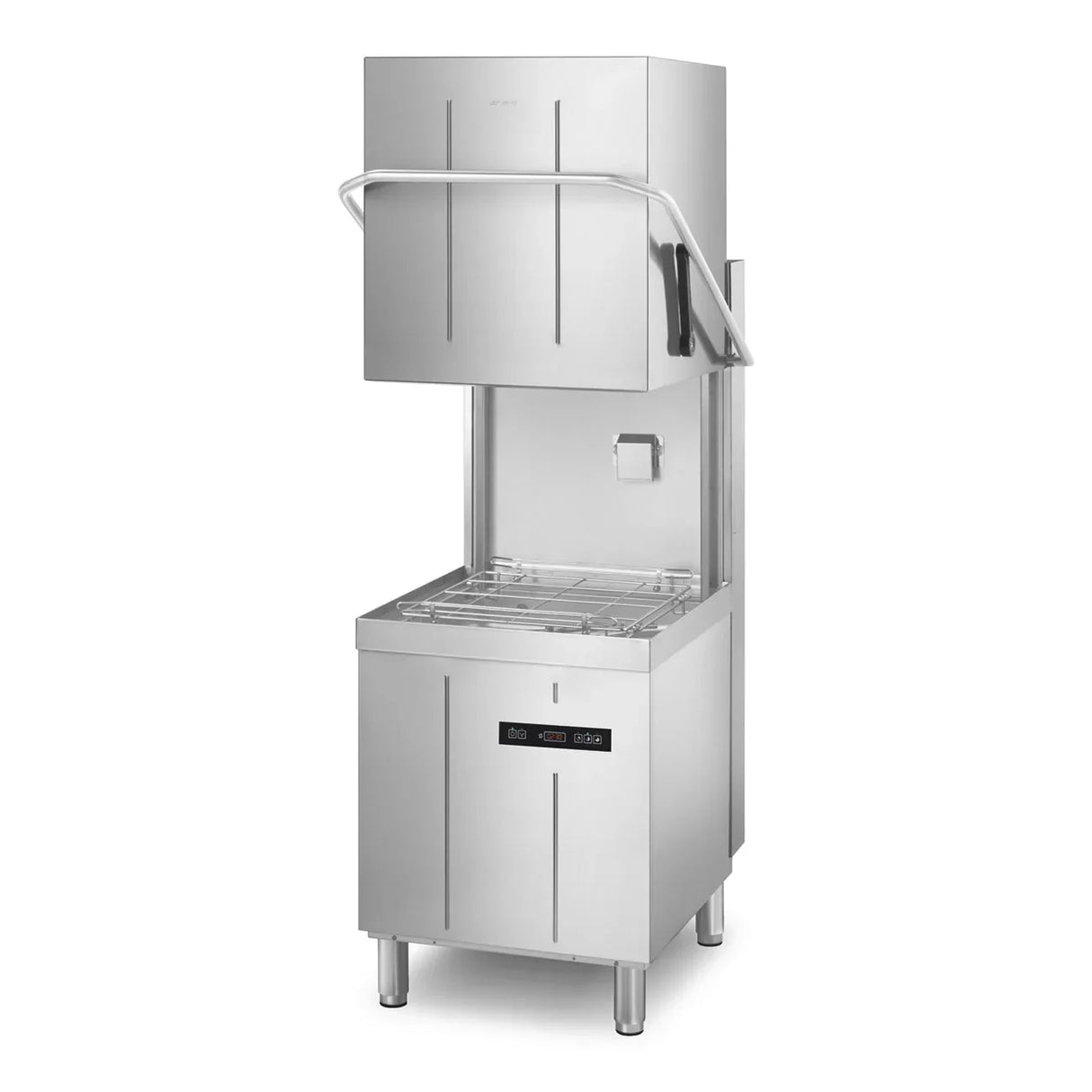

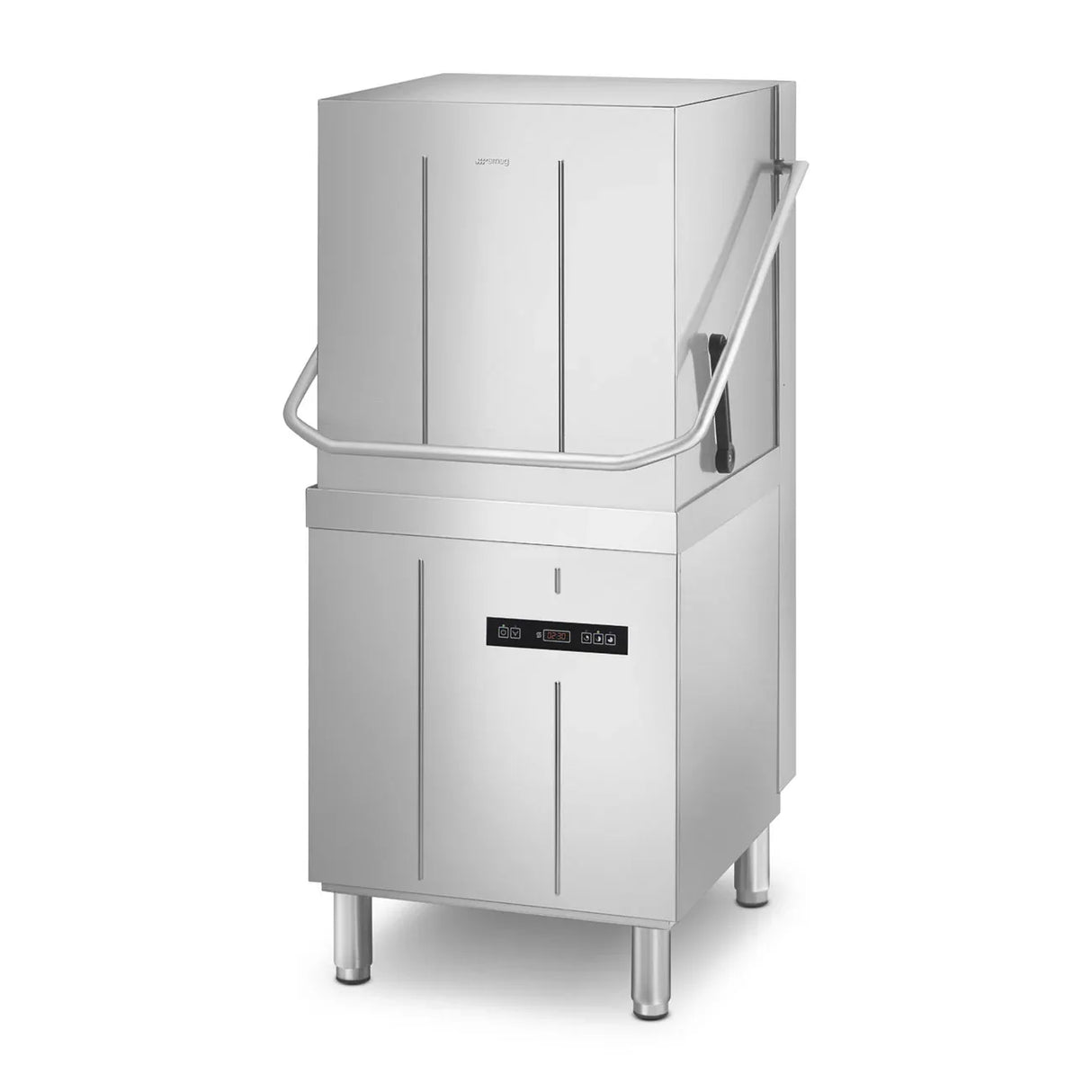

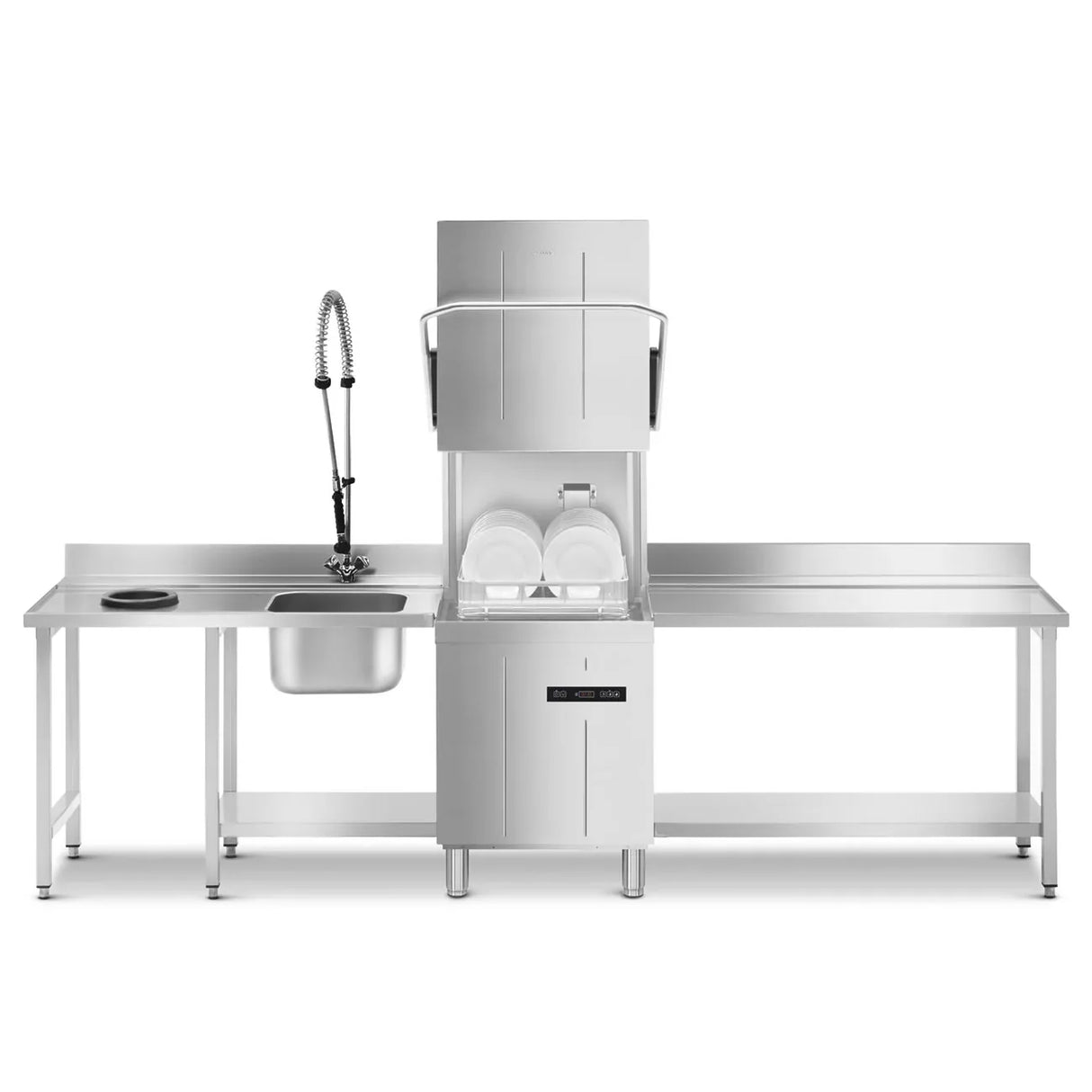

Smeg Ecoline range Hood Type Dishwasher, 3 Wash Programs 500x500 SPH505
The Ecoline range of hood type dishwashers are robust and reliable, giving sparkling results every wash. With easy-to-use soft touch controls and and dynamic 3 stage filtration system, Ecoline is the smart, economical choice for all your warewashing requirments, whether for commercial or public sector kitchens.
Extended 3-year warranty for Public Sector sites email for enquiries
TYPE
Product Family: Dishwasher
Subfamily: Hoodtype dishwasher
Series: Ecoline
Basket dimensions: 500x500 mm
Default power supply: 400 V 3N~ / 16 A / 9,7 kW / 50 Hz
Simultaneous heating: Yes
Width: 635 mm
Depth: 750 mm
Height: 1510 mm
Maximum height with hood open: 2102 mm
Usable load height: 470 mm
Functions: GN 1/1 trays washing, Triple filter, HTR, Door clearance 470mm
PROGRAMMES
Programs: Boiler 85°C/Tank 60°C-1'30"; Boiler 85°C/Tank 60°C-2'30"; Boiler 85°C/Tank 60°C-4'
Drain and self cleaning cycle: Yes
Maximum baskets/hour: 40
Maximum plates/hour: 720
INTERFACE
Panel: Ecoline 2016
Display: 4 digit
Number of buttons: 5
On/off indicator: Yes
Cycle progress indicator: Yes
End of cycle indicator: Yes
Manual diagnostics: Yes
CONSTRUCTION
Tank: Deep drawn
Tank construction: Double skinned
Tank material: Stainless steel AISI 304
Tank filter: Stainless steel
Back panel: Galvanised

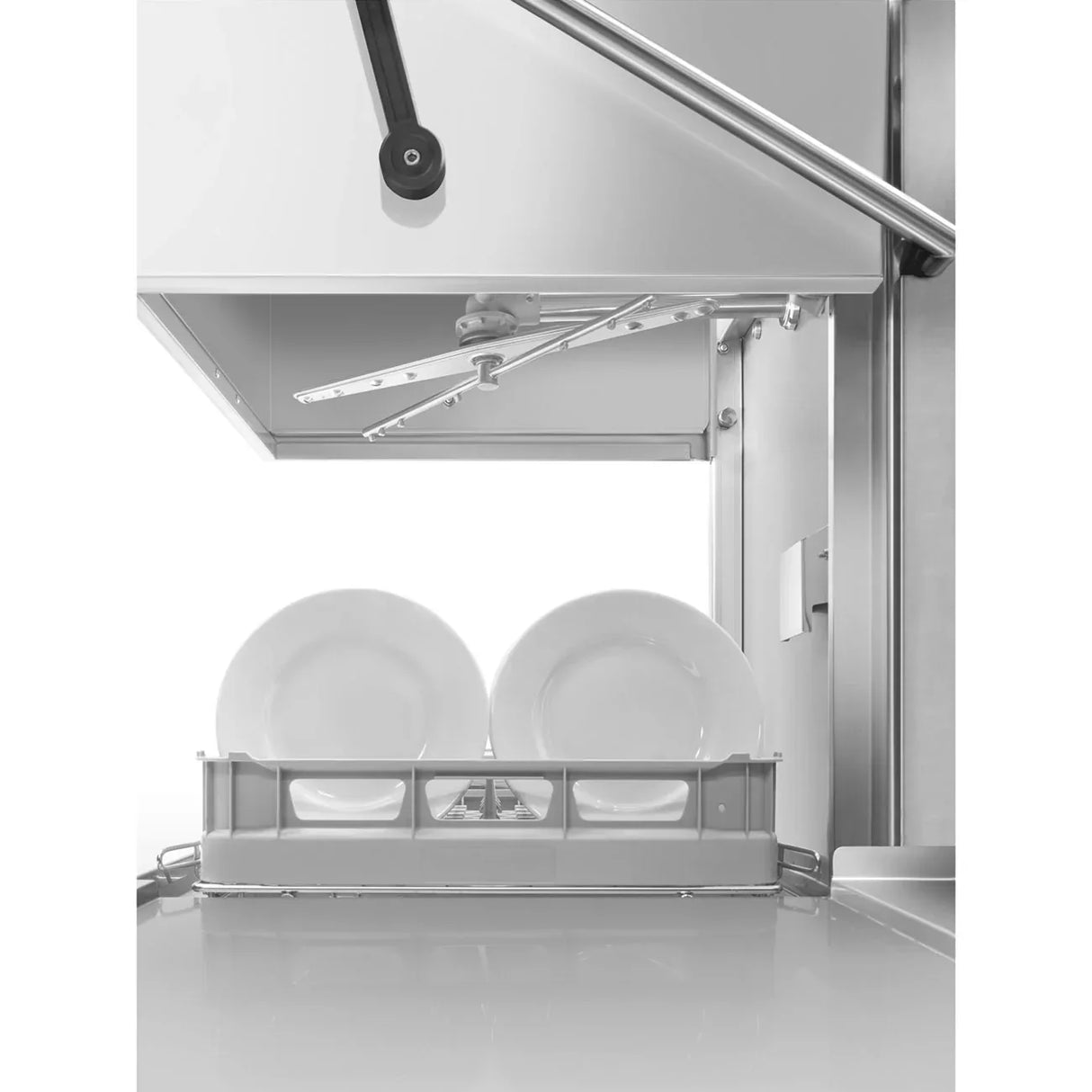

Wash arm: Stainless steel AISI 304
Rinse arm: Stainless steel AISI 304
Hood: Single skinned
Wash tank capacity: 14 l
Boiler capacity: 8 l
Protection class: IPX4
Adjustable feet: 95 mm
Drain max. height: 1000 mm
CONSUMPTION AND CONNECTIONS
Tank heating element: 2200 W
Boiler heating element: 9000 W
Wash pump: 700 W
Default connection: 9700 W
Electrical connection options: 230 V 3~ / 28 A / 9,7 kW / 50 Hz; 230 V~ / 16 A / 3,7 kW / 50 Hz (NC); 230 V~ / 29 A / 6,7 kW / 50 Hz
Water consumption per cycle: 2,7 l
Water inlet pressure: 1-6 bar / 100-600 kPa
Warm water connection: Cold 15°C
Inlet water maximum temperature: 60°C
Max water hardness: 12°fH - 7°dH
LOGISTIC INFORMATION
Dimensions: 635x750x1510 mm
EQUIPMENT
Detergent (red) hose length: Yes, manual
Peristaltic detergent pump: Yes, electronic control
Detergent flow rate: 1.5 l/h
Peristaltic rinse aid pump: Yes, electronic control
Rinse aid (blue) hose length: Yes, manual
Soft Start: Yes
Rinse aid flow rate: 0.4 l/h
Boiler thermostop: Yes
Cycle counter: Yes
Chemical dosing: gr/lt

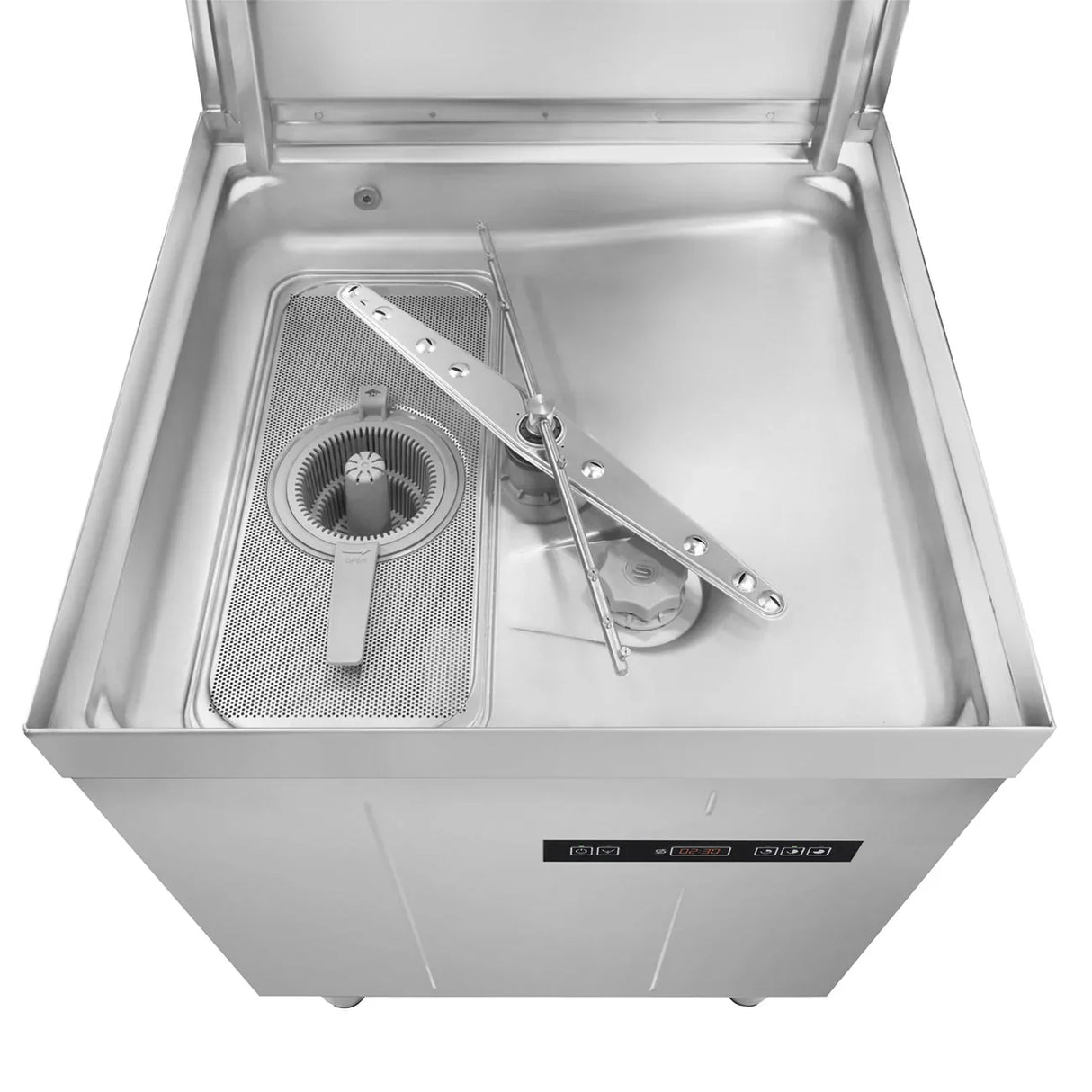

Drain pump with 3 stage filter system: Yes
Rinse pump with H.T.R. system: Rinse pump with atmospheric boiler
Break tank: Yes
Partial water exchange in the wash tank via built-in drain pump: Yes
Automatic start: Yes

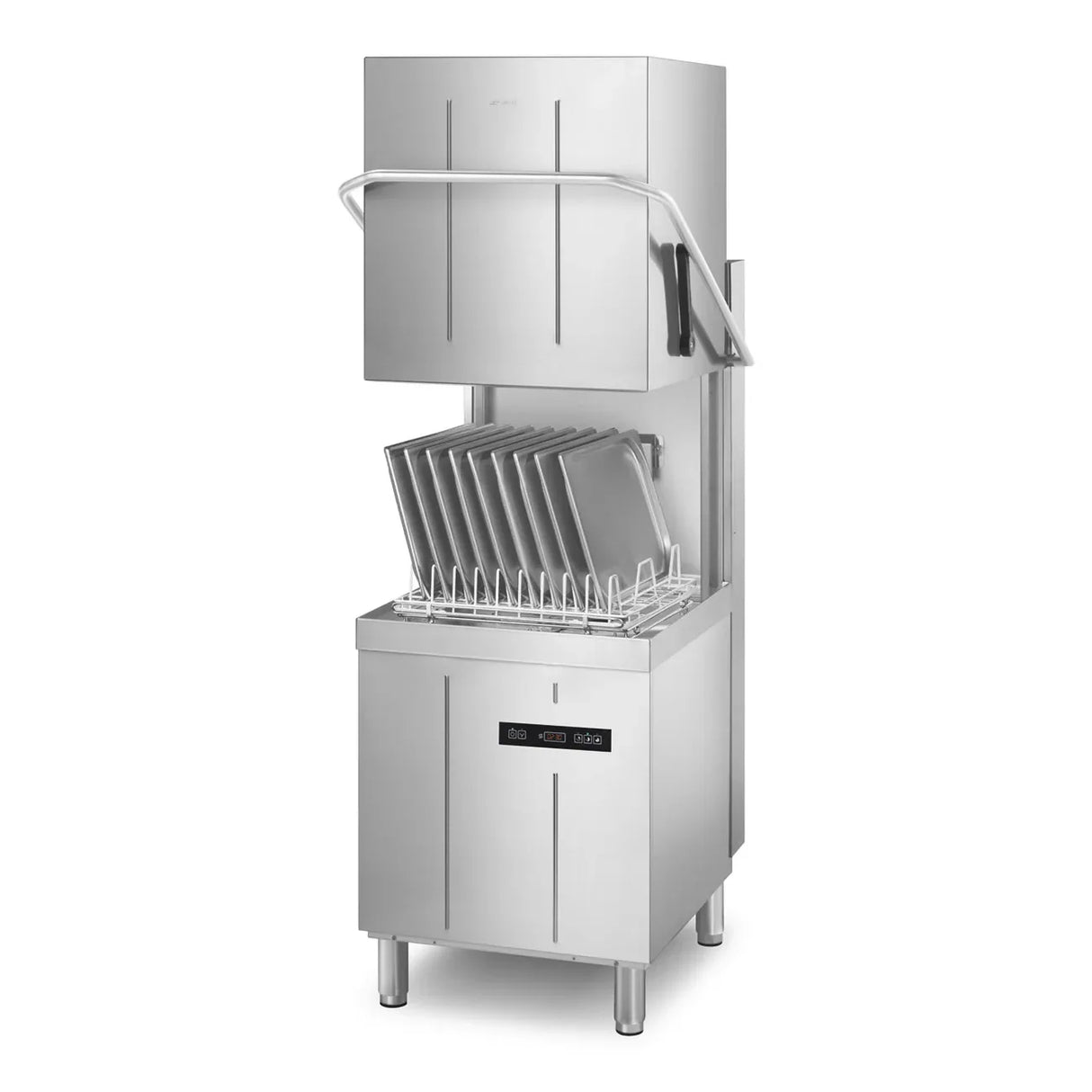

1/1GN tray washing option: Yes
