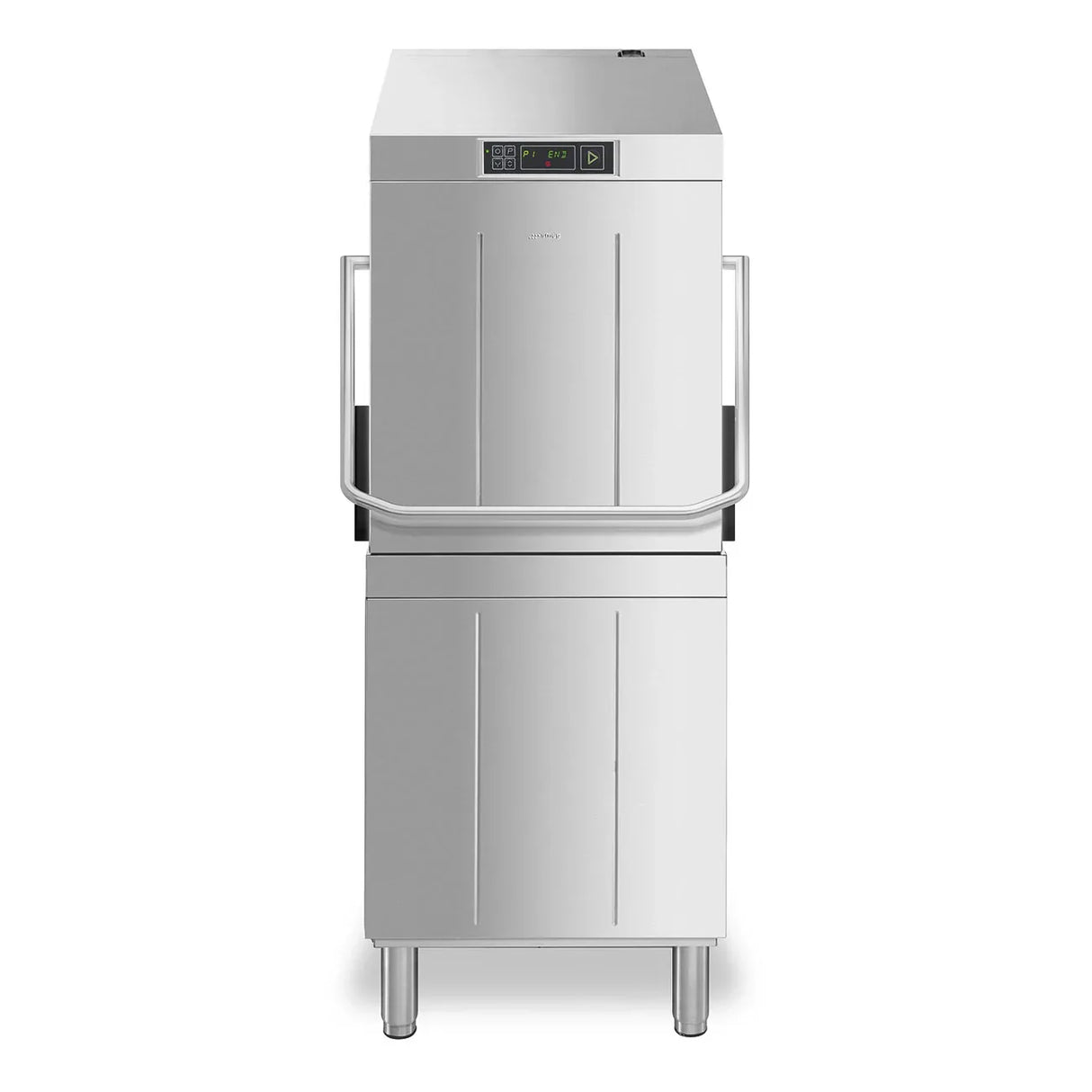

Smeg Topline range Hood Type Dishwasher, 3 Wash Programs 500x500 SPH515
The Topline range is completely developed and manufactured in our Italian factory for the requirements of the food service and catering markets. A patented rinsing system ensures optimal washing results. With the combination of aesthetic design and functionality, the SMEG commercial glass and dishwashers enable a reduction in water and energy consumption, excellent washing results as well as compliance with the highest hygienic standards.
3-year public sector warranty email for enquiries
TYPE
Product Family: Dishwasher
Subfamily: Hoodtype dishwasher
Series: Topline
Basket dimensions: 500x500 mm
Default power supply: 400 V 3N~ / 16 A / 9,7 kW / 50 Hz
Simultaneous heating: Yes
Width: 635 mm
Depth: 750 mm
Height: 1510 mm
Maximum height with hood open: 2102 mm
Usable load height: 470 mm
Functions: GN 1/1 trays washing, Triple filter, HTR, Door clearance 470mm
PROGRAMMES
Programs: Boiler 71°C/Tank 60°C-1'20"; Boiler 85°C/Tank 60°C-1'10"; Boiler 85°C/Tank 60°C-2'; Boiler 85°C/Tank 60°C-3'; Boiler 71°C/Tank 60°C-2'10"; Boiler 85°C/Tank 60°C-4'10"
Drain and self cleaning cycle: Yes
Maximum baskets/hour: 51
Maximum plates/hour: 918
INTERFACE
Panel: Easyline 2016
Display: 8 digit
On/off indicator: Yes
Low rinse aid alert: Yes
Low detergent alert: Yes
Cycle progress indicator: Yes
End of cycle indicator: Yes
Manual diagnostics: Yes

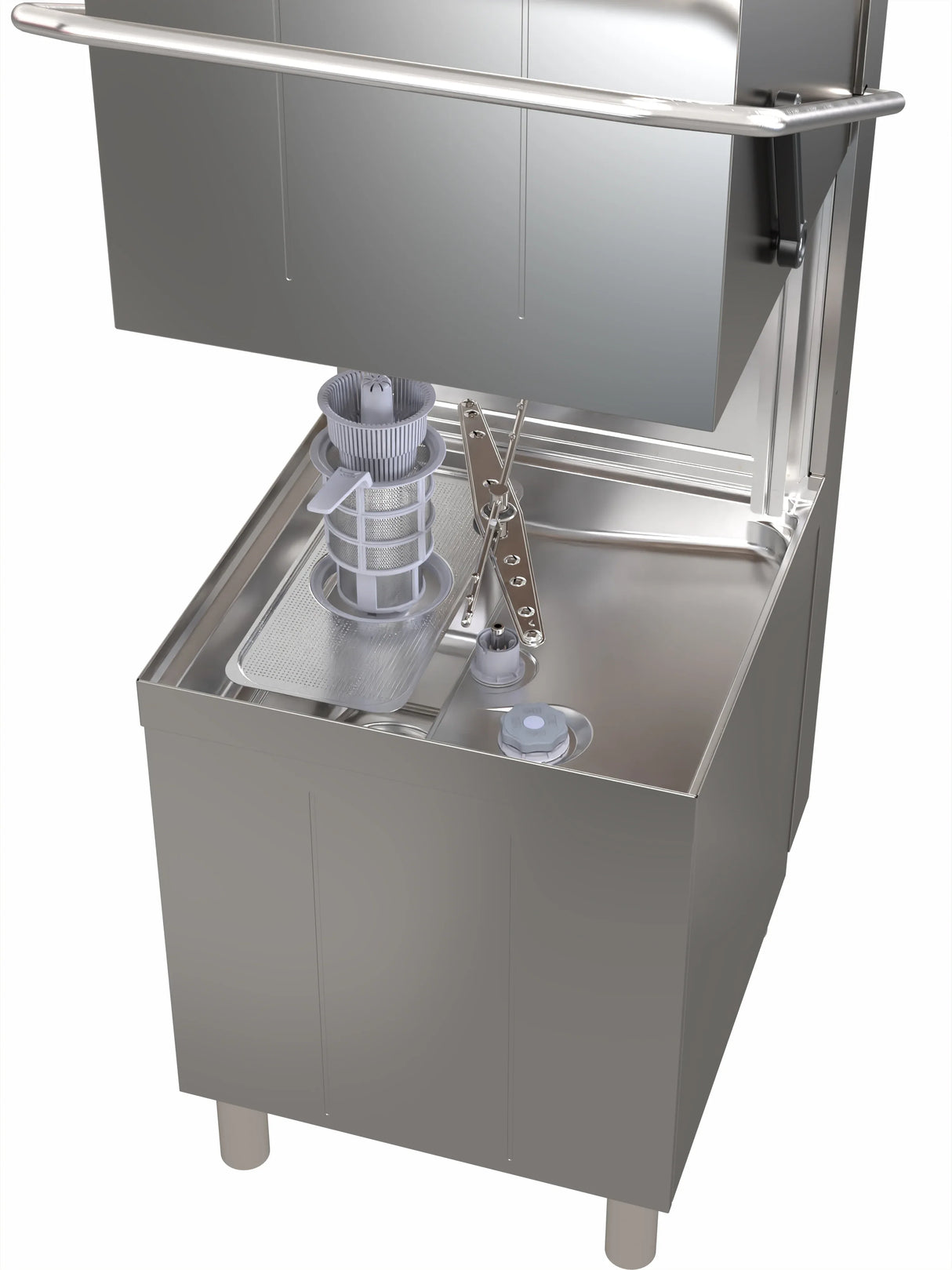

CONSTRUCTION
Tank: Deep drawn
Tank construction: Double skinned
Tank material: Stainless steel AISI 304

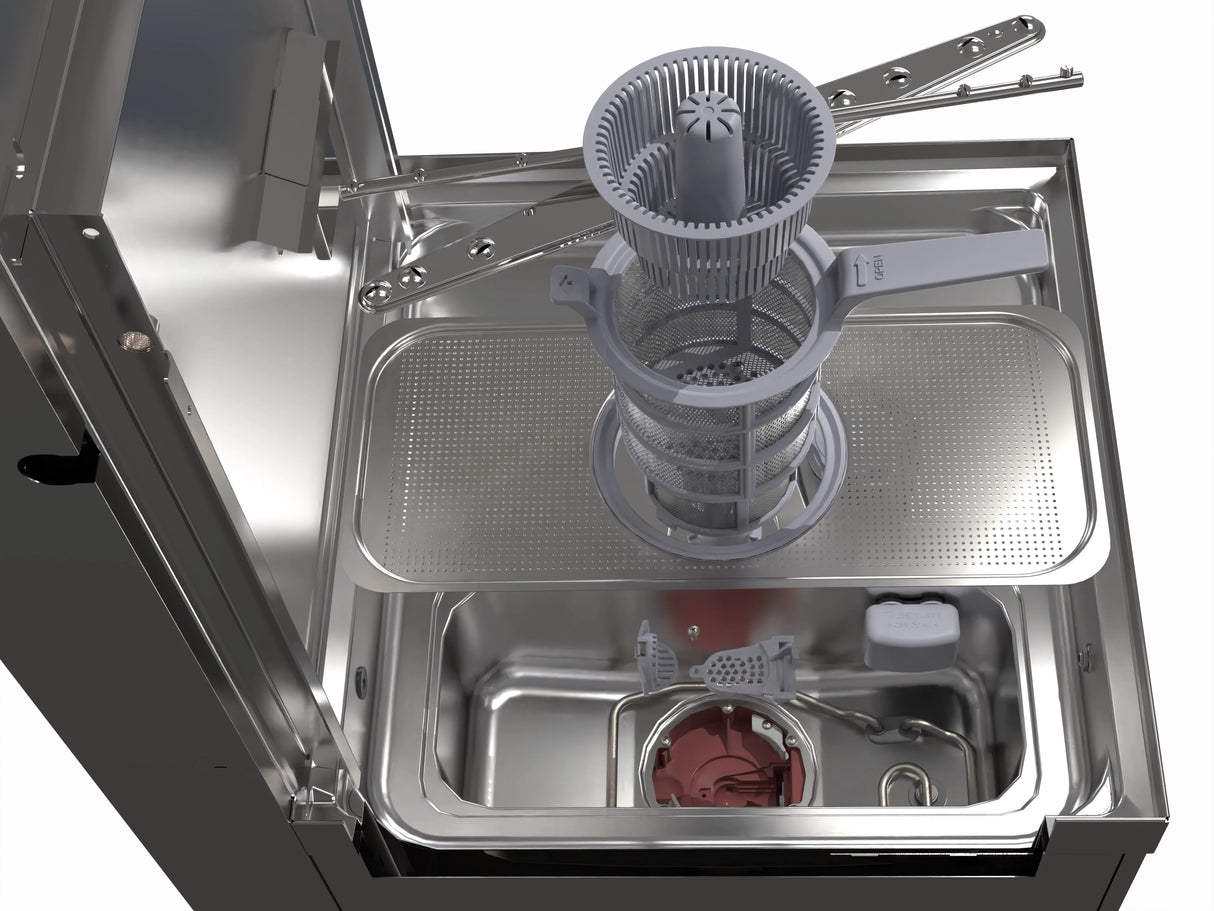

Tank filter: Stainless steel
Back panel: Galvanised
Wash arm: Stainless steel AISI 304
Rinse arm: Stainless steel AISI 304
Hood: Double skinned
Wash tank capacity: 14 l
Boiler capacity: 8 l
Noise level: Lpa 59.9 dBA
Protection class: IPX4
Adjustable feet: 95 mm
Drain max. height: 1000 mm
CONSUMPTION AND CONNECTIONS
Tank heating element: 2200 W
Boiler heating element: 9000 W
Wash pump: 700 W
Default connection: 9700 W
Electrical connection options: 230 V 3~ / 28 A / 9,7 kW / 50 Hz; 230 V~ / 16 A / 3,7 kW / 50 Hz (NC); 230 V~ / 29 A / 6,7 kW / 50 Hz
Water consumption per cycle: 3,2 l
Water inlet pressure: 1-6 bar / 100-600 kPa
Warm water connection: Cold 15°C
Inlet water maximum temperature: 60°C
Max water hardness: 12°fH - 7°dH
LOGISTIC INFORMATION
Dimensions: 635x750x1510 mm
EQUIPMENT
Detergent (red) hose length: Yes, manual
Peristaltic detergent pump: Yes, electronic control
Detergent flow rate: 1.5 l/h
Peristaltic rinse aid pump: Yes, electronic control
Rinse aid (blue) hose length: Yes, manual
Soft Start: Yes
Rinse aid flow rate: 0.4 l/h
Boiler thermostop: Yes
Cycle counter: Yes
Chemical dosing: gr/lt
Drain pump with 3 stage filter system: Yes
Rinse pump with H.T.R. system: Rinse pump with atmospheric boiler
Break tank: Yes
Partial water exchange in the wash tank via built-in drain pump: Yes
Automatic start: Yes
Chemical level probe: Yes, optional KITSONLIV
1/1GN tray washing option: Yes
