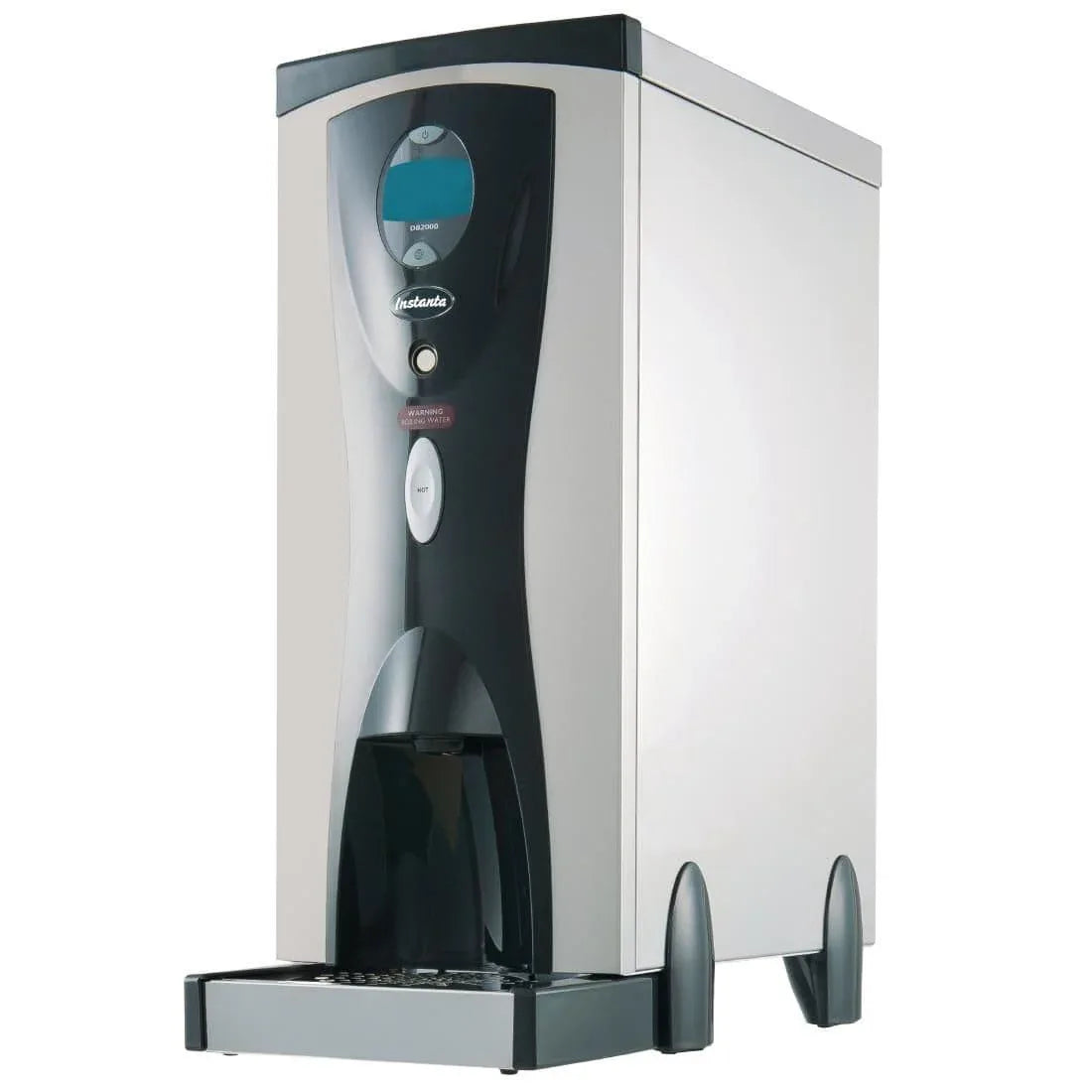

Instanta CTSP15PB Autofill Countertop Water Boiler 12Ltr DB2000

Features and Benefits
· Electronically controlled for constant temperatures
· Programmable down to 80°C if required
· Simple push and hold dispense button
· Energy saving ECO mode
· Lock-off setting using electronic key-fob
· Early warning LCD diagnostics
· Five water level sensors

Installation
Counter mounted with drip tray.

Plumbing
Designed for direct connection to a potable cold water supply using the 1.5 metre (3/4” BSP) hose supplied. An isolating valve should be installed
between the supply and the heater. Rear supply connection and choice of rear or front overflow.

Electrical
Fitted with 1.75 metres of cable and a 13amp moulded plug.

Construction
Brushed stainless steel case.
Stainless steel heating chamber.
Low voltage switching.
Two safety cut-outs.
Approvals
WRAS approved.
Locking System
The locking system is activated by touching an
electronic key fob against a sensor (located below
the display panel).
The boiling water dispense function can be set up in
four different ways;
1 NONE/OPEN (Standard setting) – No lock.
Simply push & hold button to dispense
boiling water.
2 TOGGLE - Key fob turns the dispense function
on and off sequentially, as required.
3 TIMED – Boiling water dispense is available for a
pre-set time (adjustable in minutes), determining
how long it can be used before locking off.
4 ONE-SHOT – A single drink can be dispensed
before the boiling water function locks off.
One key fob is supplied with each boiler with
additional keys available from Instanta spares
department (Part No: D2000L). Up to 20 individual
keys can be programmed.

SPECIFICATION FOR DB2000 SureFlow Plus Touch Counter Top Boiler 15Ltr Push Button
