Instanta Compact Countertop Boiler 27Ltr/Hr 1000C JD Catering Equipment Solutions Ltd

Instanta SKU: 1000C-CTS5

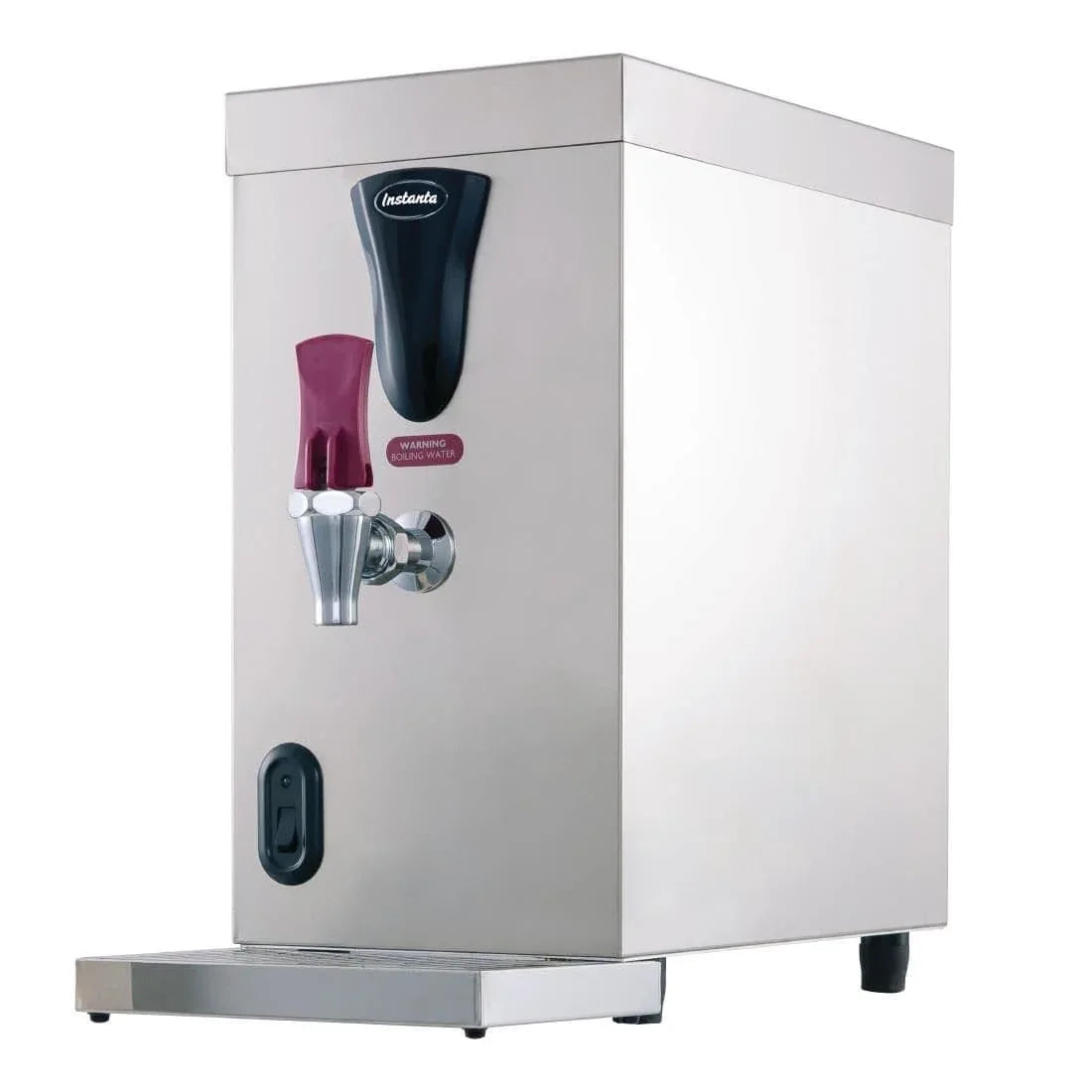

Instanta Compact Countertop Boiler 27Ltr/Hr 1000C

£485.00 £666.05 Save £181.05

Shipping calculated at checkout

CTS5 SUREFLOW COUNTER TOP BOILER 5LTR (1000C)

The CTS5 is designed for those locations where space is limited but standards are high. Made to Instanta's exacting specification criteria, the CTS5 is the boiling water solution for small to medium sized catering establishments.

2 YEAR WARRANTY

Features and Benefits

· Self diagnostics system
· Long-life incoloy element
· Well insulated for minimal heat loss & energy use
· Stainless steel drip tray included
· Complete with 1.75 metres of cable & 13 amp plug


Installation
Easy to install on a stable worktop.


Plumbing

Designed for direct connection to a potable cold water supply using the 1.5 metre (3/4 BSP) hose supplied. An isolating valve should be installed between the supply and the heater. Rear supply connection and choice of rear or front overflow is available (rear option requires kit not supplied).

Electrical
To be connected to 230 volt supply with a suitable break capacity.


Construction
Mirror finished stainless steel case.
Stainless steel heating chamber.
Low voltage switching.
Two safety cut-outs.

Approvals
WRAS approved.

SPECIFICATION FOR 1000-C SureFlow Counter Top Boiler 5Ltr

Height (mm) 440
Width (mm) 218
Depth (mm) 465
Rear connection clearance (mm) 50
Depth excluding drip tray (mm) 345
Tap clearance to drip tray (mm) 150
Power loading (kW) 3
Heat-up time (mins) 16
Recovery Rate (litres) 0.5
Stand by Power (kW/h) 0.066
Rapid Draw-Off (litres) 5
Rapid Draw-Off (cups) 30
Hourly Output (litres) 27
Hourly Output (cups) 162
* Based on 6 Cups Per Litre
