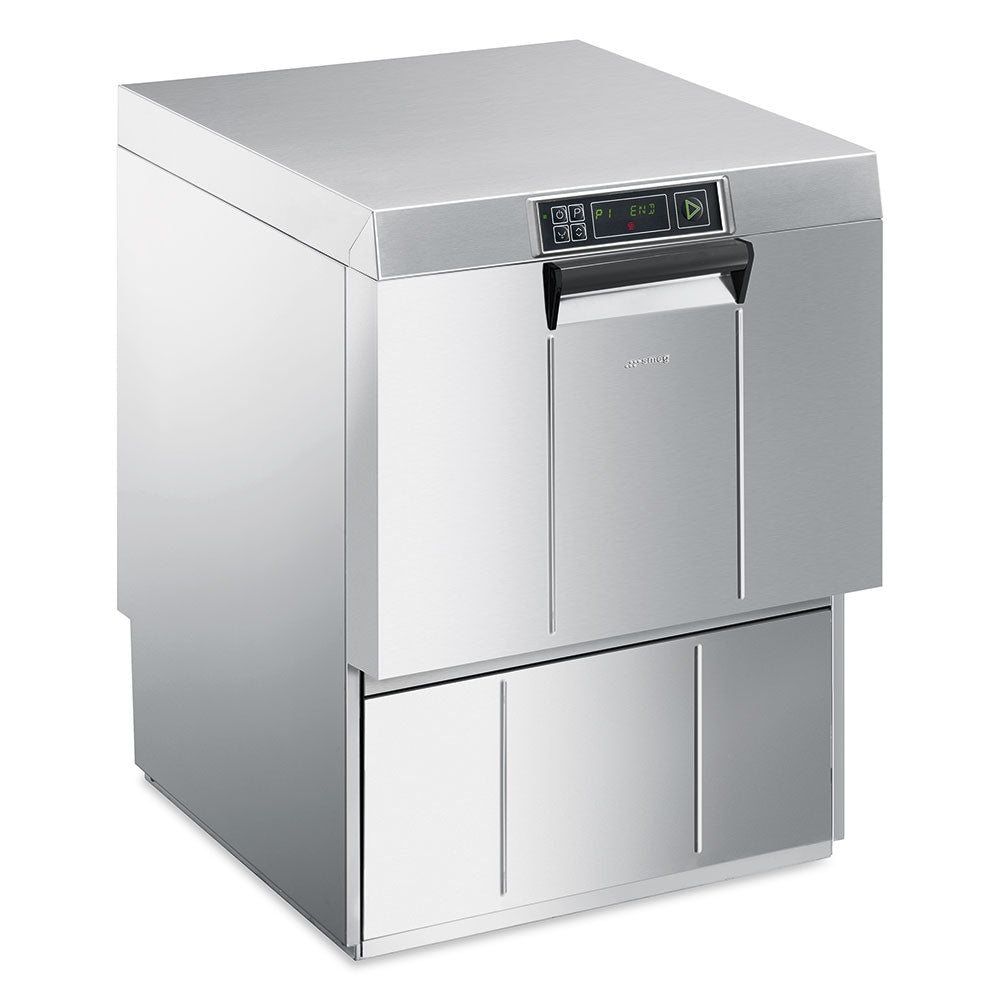

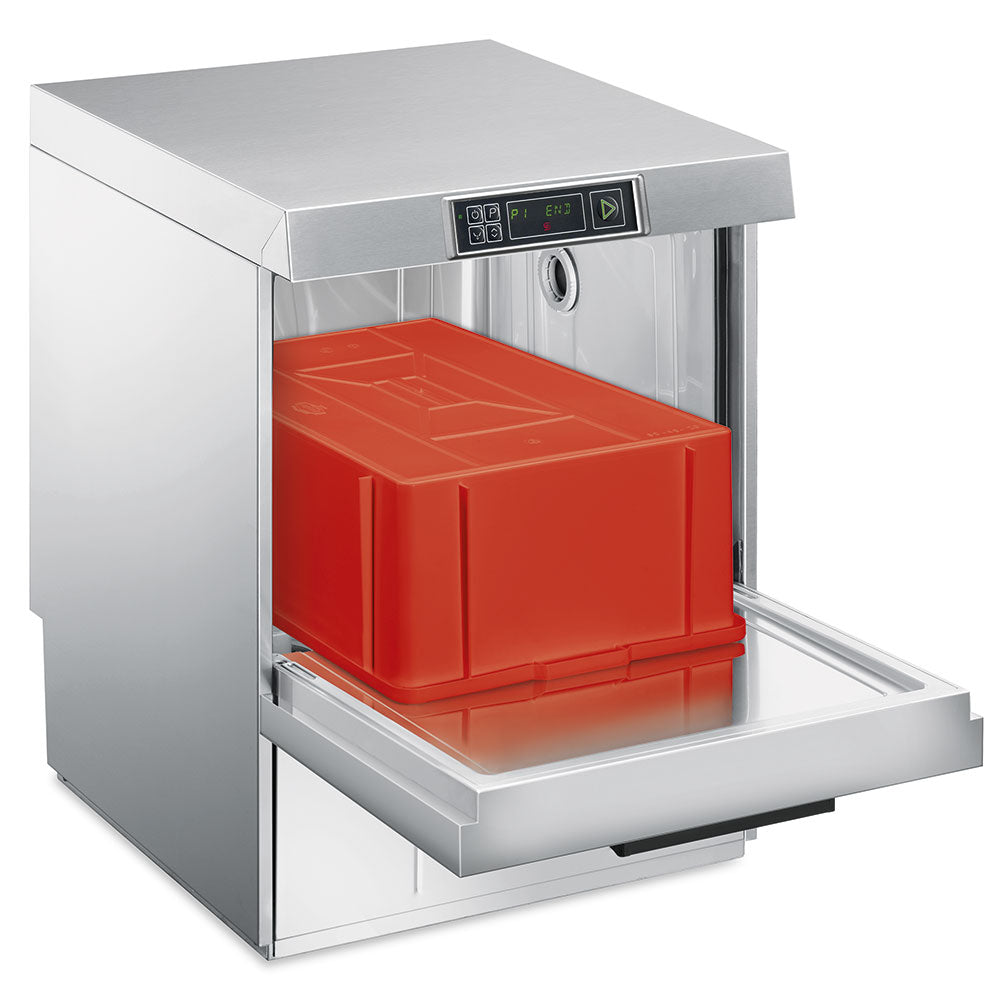

Smeg Topline Undercounter Traywasher with integral water softener, 7 Wash Programs 500x500 SPD516SUK

Smeg Topline Undercounter Traywasher with integral water softener, 7 Wash Programs 500x500 SPD516SUK

General Data

• Product Family: Dishwasher

• Subfamily: Undercounter traywasher

• Line: Easyline

• Basket Dimensions: 500x500 mm

• Rinse Pump: HTR system

• Washing Pump: Standard

• EAN Code: 8017709345914

Programmes

• Programs: 6 automatic programs; 1 fully programmable program; Self-cleaning programs

• Program Options: Extra rinse; Clean water cycle

• Program Specifications: Various boiler and tank temperature combinations

• Maximum Baskets/Hour: 60

• Maximum Plates/Hour: 720

Technical Features

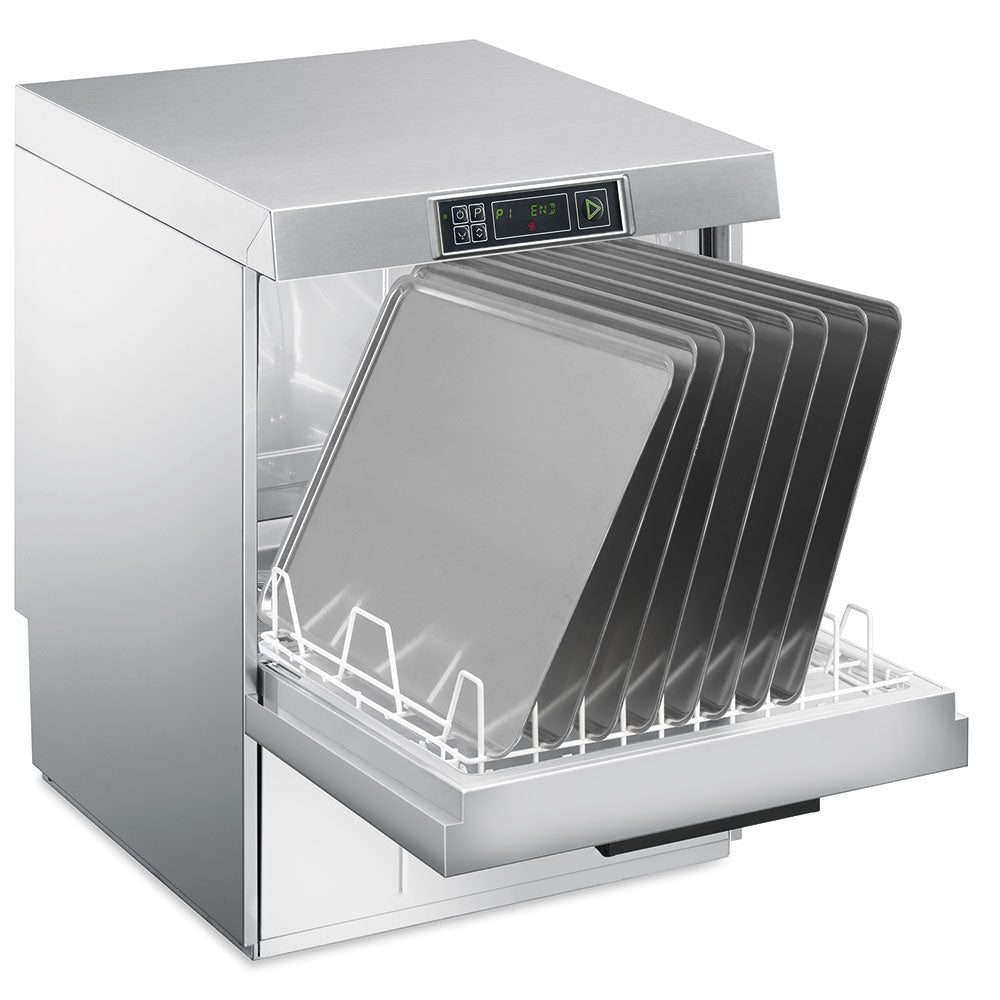

• Trays Number: 7 x GN 1/1 (530 x 325 mm); 6 x EN 1/1 (600 x 400 mm)

• Detergent Flow Rate: 1.5 l/h

• Tank Heating Element Power: 2000 W

• Rinse Aid Flow Rate: 0.4 l/h

• Boiler Heating Element Power: 6000 W

• Washing Pump Power: 700 W

• Default Connection: 6700 W

• Minimum Water Cycle Consumption: 1.8 l

• Water Consumption per Cycle: 3.2 l

• Warm Water Connection: 8°C

• Water Inlet Pressure: 1-6 bar / 100-600 kPa

• Inlet Water Maximum Temperature: 60°C

• Max Water Hardness: 12°f - 7°dH

• Usable Load Height: 400 mm

• Depth with Door Open: 1020 mm

Electrical Connection

• Plug: (G) UK & Singapore

• Default Power Supply: 230 V~ / 30 A / 6.8 kW / 50 Hz

• Electrical Connection Options: Various options available

Interface

• Display: 8 digit

• On/Off Indicator: Yes

• Low Rinse Aid Alert: Yes

• Low Detergent Alert: Yes

• Cycle Progress Indicator: Yes

• End of Cycle Indicator: Yes

• Manual Diagnostics: Yes

Construction

• Tank: Deep drawn

• Construction: Double wall

• Tank Material: Stainless steel AISI 304

• Tank Filter: Stainless steel

• Door: Double skinned

• Back Panel: Galvanized

• Upper Washing System: Stainless steel spray arms

• Lower Washing System: Stainless steel spray arms

• Counter Balanced Door: Yes

• Door Gasket: On 3 sides

• Rack Guides: Embossed

• Hood Elevation System: Manual

• Filter: 5-stages filter system

• Wash Tank Capacity: 11 l

• Boiler Capacity: 6.5 l

• Protection Class: IPX4

• Adjustable Feet: Yes

• Drain Max. Height: 600 mm

Logistic Information

• Dimensions: 600x690x822 mm

• Depth: 690 mm

• Width: 600 mm

• Height: 822 mm

• Net Weight: 68 kg

• Packed Width: 660 mm

• Packaged Depth: 700 mm

• Height (Packed): 990 mm

• Dimensions of Packed Product: 990x660x700 mm

• Gross Weight: 76 kg

• Type of Packaging: Carton on pallet

• Packaging Composition: Various materials

Equipment

• Drain Pump: Yes

• Peristaltic Detergent Pump: Yes, electronic control

• Chemical Level Probe: Yes, optional KITSONLIV

• Peristaltic Rinse Aid Pump: Yes, electronic control

• Chemical Dosing: gr/lt

• Integral Continuous Water Softener: Yes

• Automatic Start: Yes

• Soft Start: Yes

• Stand-by System: Yes

• Boiler Thermostop: Yes - default

• Tank Thermostop: Yes

• Cycle Counter: Yes

• Break Tank: Yes

• Partial Water Exchange: Yes

• Detergent Hose Length: Yes, manual

• Rinse Aid Hose Length: Yes, manual
