Maidaid C512/C512D Dishwasher JD Catering Equipment Solutions Ltd

Maidaid SKU: MaidC512-13a

Maidaid C512/C512D Dishwasher

£2,120.00 £3,820.00 Save £1,700

Shipping calculated at checkout

Maidaid C512/C512D Dishwasher

  • C512 Rack size 500 x 500mm
  • Maximum useable height 340mm
  • Dimensions W580 x D610 x H810mm
  • Height excludes adjustable feet which will add 10 - 20mm
  • Three selectable cycle times ranging from 70-240 sec
  • Power 2.6/4.5/6.5kW
  • 13/20/30 Amps required

Features

  • 2 year warranty
  • Type AA breaktank
  • Bright LED display with soft touch controls
  • Detergent and rinse aid dosing as standard
  • Supplied with two open cup/glass racks
  • Stainless steel construction

Optional Drain pump and install

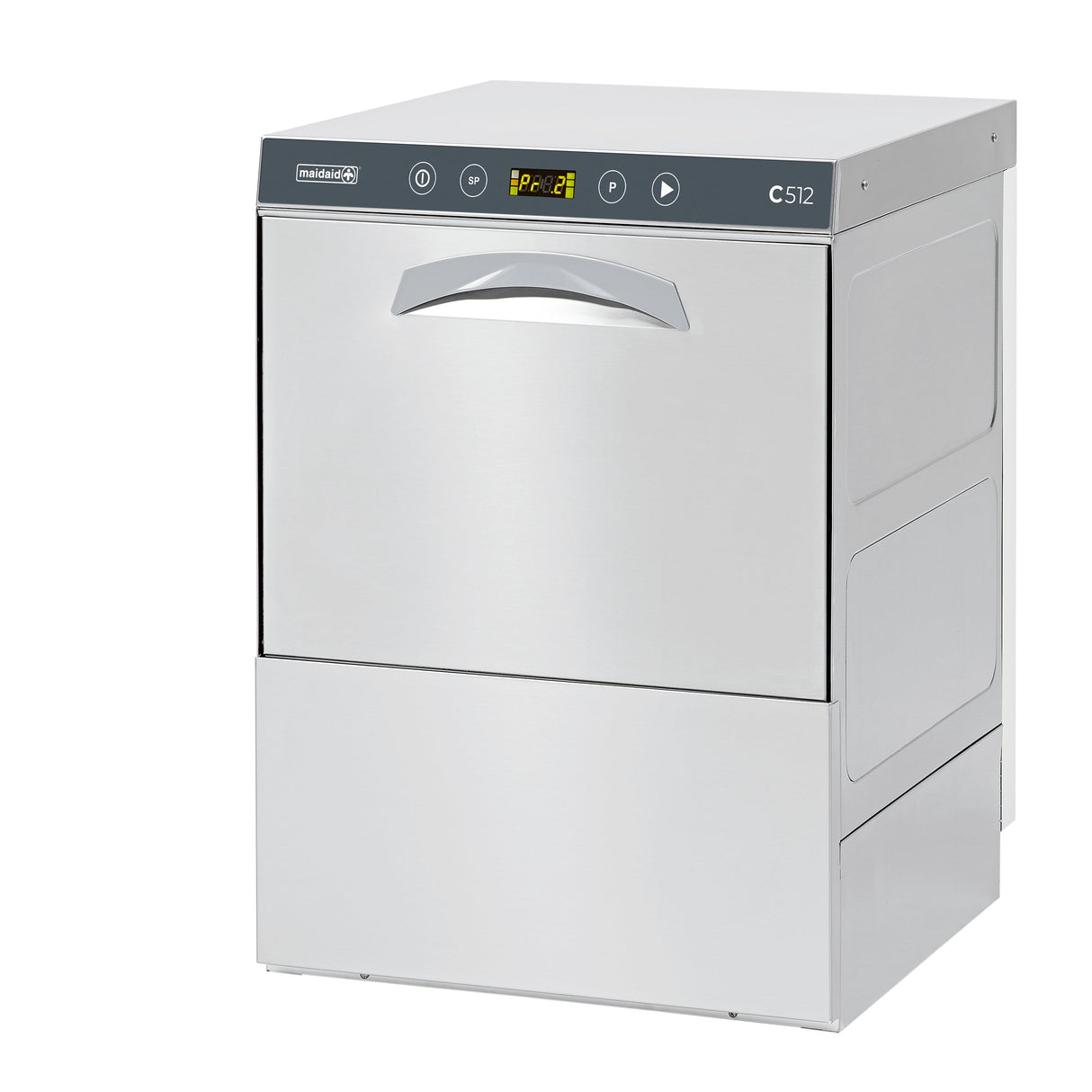

C Range - Undercounter C512
Width x Depth x Height mm 580x610x810mm
Feet Height 10mm-20mm
Basket size 500x500mm
Maximum useable height 340mm
Door Opening 365mm
Cycle times 70/90/180 Seconds
Water consumption per cycle 2.0 Litres
Wash tank capacity 20 Litres
Phase - Options Single/3-Phase
Power Single Phase Options 2.6kW(13Amp),4.5kW(20Amp),
6.5kW(30Amp)
Power Three Phase 6.5kW(16Amp)
Detergent pump Peristaltic - non timed
Rinse aid pump Peristaltic - non timed
Drain pump Optional C512D
Breaktank Yes
Water supply pressure 2 to 4 Bar
Body Construction Partial Double Skin
Door/Hood Construction Double Skin
Scrap Trays Yes
Internal Rinse Booster Pump Yes
Number Of Cycles 3
Total Maximum Load(as supplied) 6.5kW(30Amp) - Single Phase
