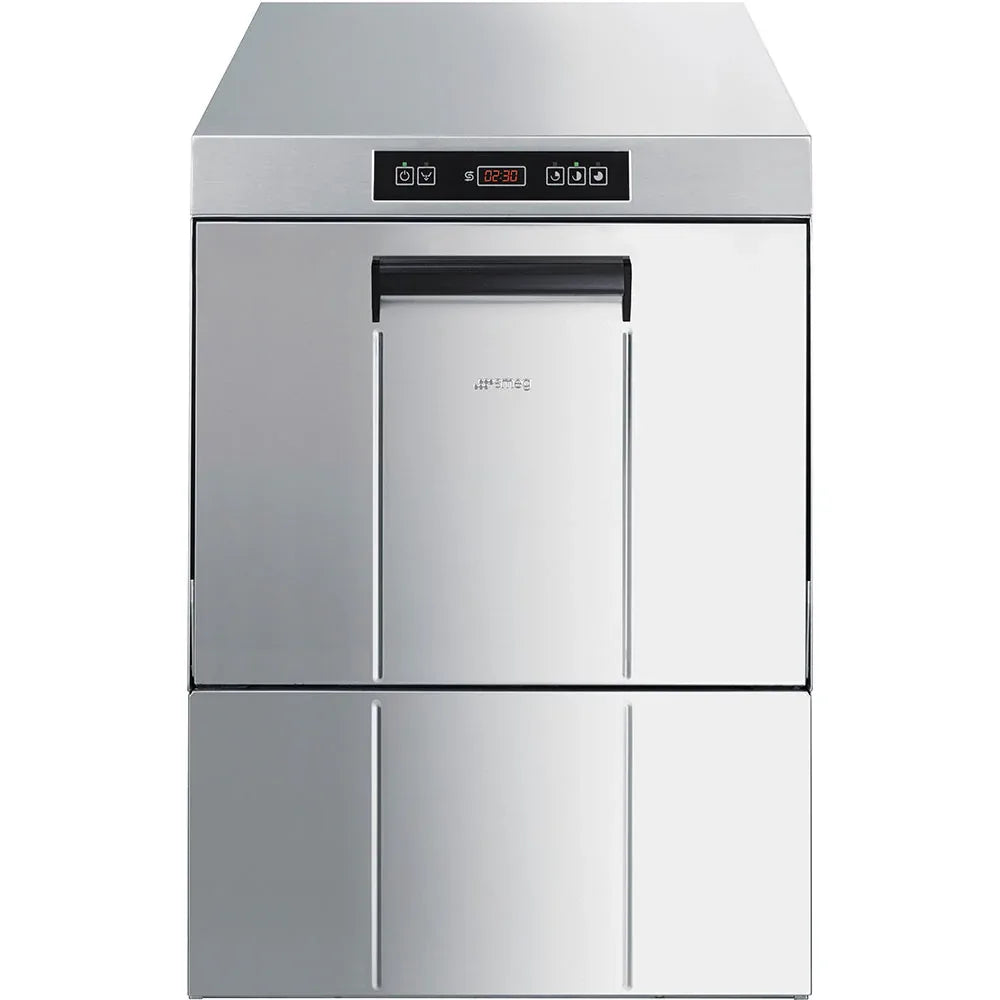

Smeg Ecoline range Undercounter Dishwasher, 3 Wash Programs 500x500 SPD505UK
The Ecoline range of glass and dishwashers are robust and reliable, giving sparkling results every wash. With easy to use soft touch controls and an unrivalled class leading Interlocking 3 stage filtration system, Ecoline is the smart, economical choice for all your warewashing requirments, whether a pub, club, restaurant, care home or hospital ward.
| Undercounter Dishwasher, 3 Wash Programs / 500x500 / 5.7kW 25A 1ph |
| Dimensions (mm) (WxDxH) |
| 580 x 600 x 820 |
Features + Benefits
- Simple soft touch controls are easy to understand and operate.
- Choice of three wash programs offer different wash options.
- Interlocking 3 stage filtration system keeps wash water cleaner and help prevents blockages in the wash and drain pumps.
- Powerful wash pump with soft start function delivers a superior wash without damaging delicate items.
- Generous usable wash height enables washing of taller glasses and larger plates.
- Rinse booster pump ensures consistent rinse pressure for sparkling results.
TYPE
Subfamily: Undercounter Dishwasher
Basket dimensions: 500x500 mm
Default power supply: 230 V~ / 32 A / 7,3 kW /50 Hz
Width: 578 mm
Depth: 598 mm
Height: 820 mm
Depth with door open: 1000 mm
Usable load height: 365 mm
FUNCTIONS
Functions:GN 1/1 trays washing, Triple filter, HTR, Door clearance 365mm
PROGRAMMES
Programs: Boiler 85°C/Tank 60°C-1'30"; Boiler 85°C/Tank 60°C-2'30"; Boiler 85°C/Tank 60°C-4'
Drain and self cleaning cycle: Yes
Maximum baskets/hour: 40
Maximum plates/hour: 720
INTERFACE
Panel: Ecoline 2016
Display: 4 digit
Number of buttons: 5
On/off indicator: Yes
Manual diagnostics: Yes
CONSTRUCTION
Tank: With printed base
Tank construction: Single skinned
Tank material: Stainless steel AISI 304
Tank filter: Plastic
Door: Double skinned
Back panel: Galvanized
Wash arm: Stainless steel AISI 304
Rinse arm: Plastic
Door gasket: Top only
Rack guides: Embossed
Wash tank capacity: 13 l
Boiler capacity: 6 l
Noise level: Lpa 55.5 dBA
Protection class: IPX4
Adjustable feet: 15 mm
Drain max. height: 600 mm
CONSUMPTION AND CONNECTIONS
Tank heating element: 2000 W
Boiler heating element: 6100 W
Wash pump: 700 W
Default connection: 7300 W
Electrical connection options: 230 V~ / 15 A / 3,3 kW / 50 Hz (NC); 230 V~ / 12 A / 2,7 kW / 50 Hz (NC); 230 V~ / 20 A / 4,5 kW / 50 Hz (NC); 230 V~ / 30 A / 6,8 kW / 50 Hz (NC); 400 V 3N~ / 12 A / 6,8 kW / 50 Hz (NC); 400 V 3N~ / 12 A / 7,3 kW / 50 Hz
Water consumption per cycle: 2,7 l
Water inlet pressure: 1-6 bar / 100-600 kPa
Warm water connection: Cold 15°C
Inlet water maximum temperature: 60°C
Max water hardness: 12°fH - 7°dH
LOGISTIC INFORMATION
Dimensions:578x598x820 mm
EQUIPMENT
Detergent (red) hose length: Yes, manual
Peristaltic detergent pump: Yes, electronic control
Detergent flow rate: 1.5 l/h
Peristaltic rinse aid pump: Yes, electronic control
Rinse aid (blue) hose length: Yes, manual
Soft Start : Yes
Rinse aid flow rate : 0.4 l/h
Boiler thermostop : Yes
Cycle counter : Yes
Chemical dosing : gr/lt
Drain pump with 3 stage filter system : Yes
Rinse pump with H.T.R. system : Rinse pump with atmospheric boiler
Break tank : Yes
Partial water exchange in the wash tank via built-in drain pump : Yes
Automatic start : Yes
1/1GN tray washing option : Yes
Dimensions Packed
Packed width : 660 mm
Packaged depth : 700 mm
Height (mm) packed : 990 mm
Dimensions of the packed product (mm) : 990X660X700
Gross weight (kg) : 66
