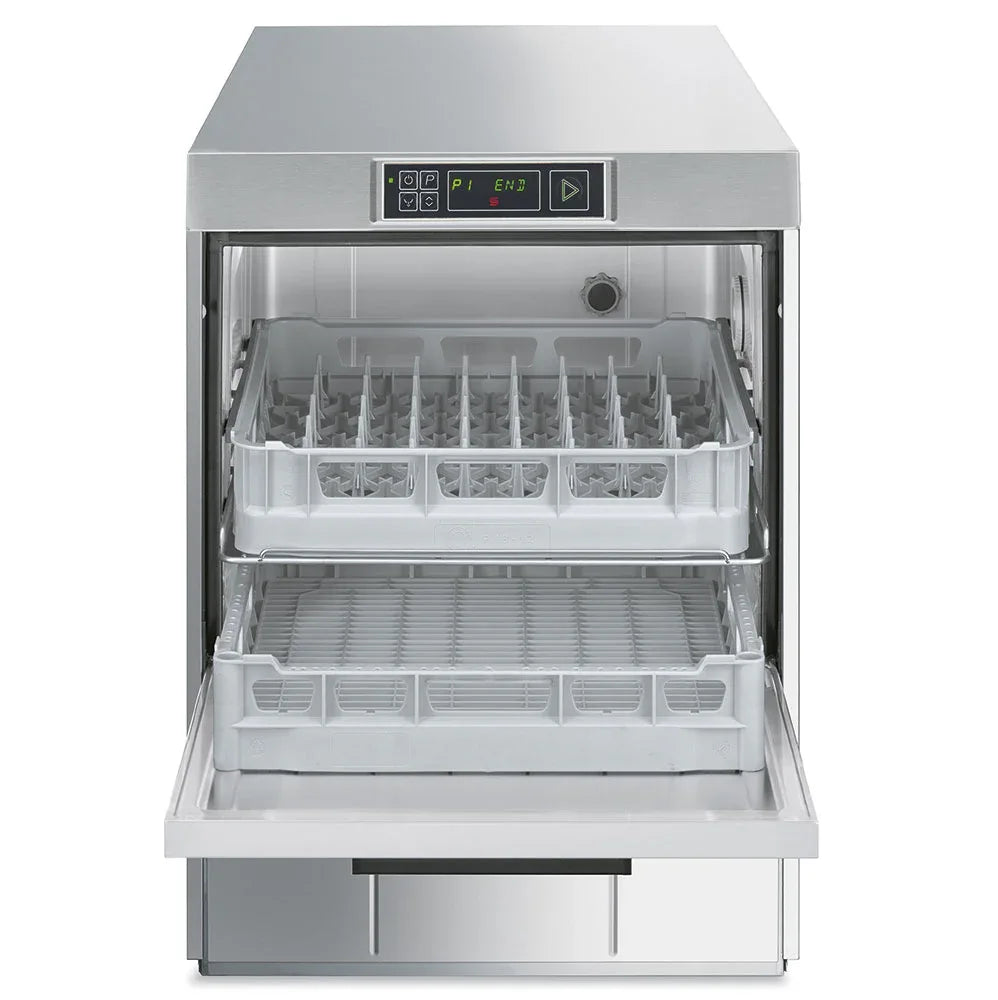

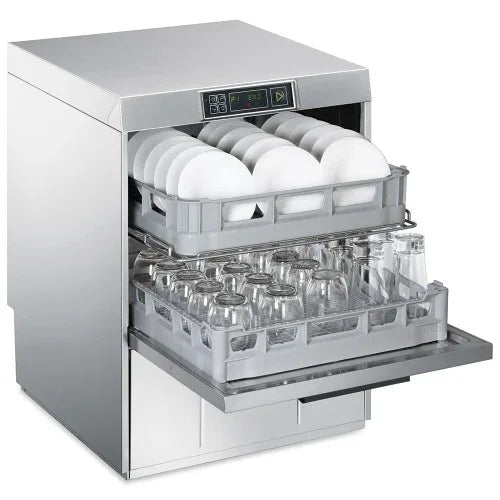

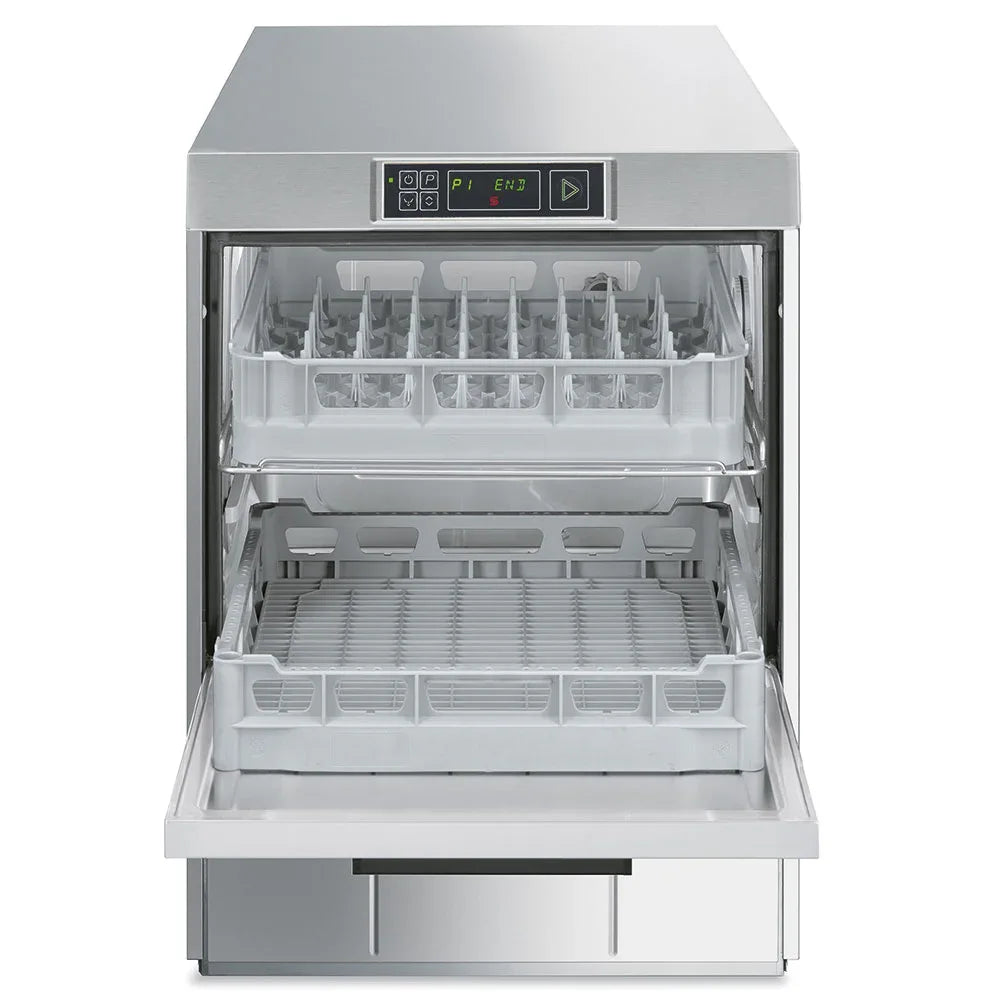

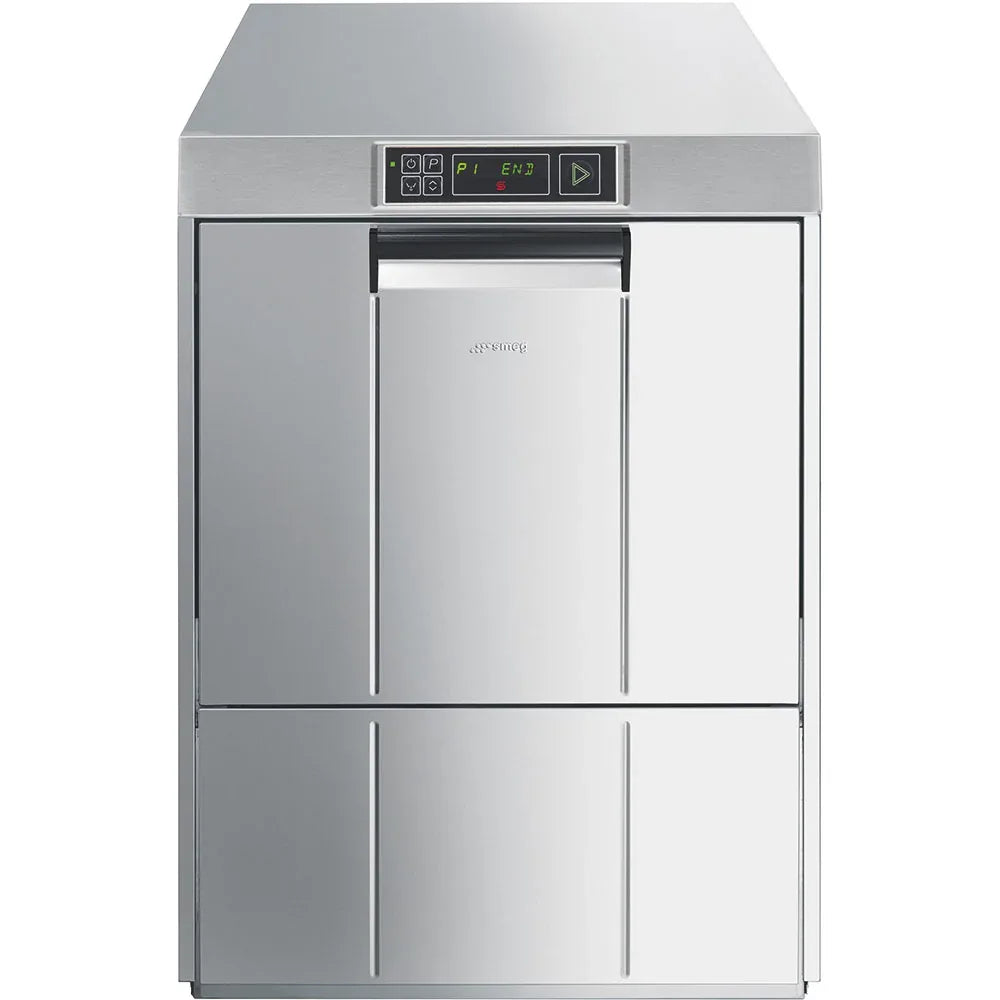

Smeg Topline Undercounter Twin Basket Dishwasher, 7 Wash Programs 500x500 SPD512SUK
The Topline range is completely developed and manufactured in our Italian factory for the requirements of the food service and catering markets. A patented rinsing system ensures optimal washing results. With the combination of aesthetic design and functionality, the SMEG commercial glass and dishwashers enable a reduction in water and energy consumption, excellent washing results as well as compliance with the highest hygienic standards.
- Fully double skinned and insulated construction in AISI 304 stainless steel
- Moulded deep drawn wash tank with rounded corners
- 2x wash arms in AISI 304 stainless steel
- 2x rinse arms in AISI 304 stainless steel
- Counterbalanced and insulated door with gasket
- Usable wash height 300mm
- Double rack system with extractable support, washing two baskets simultaneously; upper basket for plates/saucers, lower basket for glasses/cups.
- Automatic partial water exchange in the wash tank via the drain pump
- Rinse booster pump offers (HTR) rinse via atmospheric boiler
- Three-stage dynamic filter system
- Drain pump
- WRAS compliant break tank
- Fully electronic control panel with soft touch buttons
- 7 tailored wash programs with optional freshwater and extended rinse options
- Wash pump with soft start
- Thermostop for guaranteeing the rinse water temperature
- Stand-by function to limit the activity of the heating elements during periods of non-use
- Self cleaning cycle on drain down
- Self-diagnosis system with error messages
- Electronically controlled peristaltic detergent and rinse aid dispensers
TYPE
Subfamily : Undercounter Dishwasher
Type : Double basket
Basket dimensions : 500x500 mm
Default power supply : 230 V~ / 22 A / 5,0 kW /50 Hz
Dual Heating function : Yes
Width : 600 mm
Depth : 600 mm
Height : 820 mm
Depth with door open : 1020 mm
Usable load height : 415 mm
Configuration 1 : lower basket maximum height for glasses / upper basket for dishes : 110mm e 225mm
Configuration 2 : lower and upper basket set at maximum height:190mm e 145mm
AESTHETICS
Series : Topline
Led colour : Green
FUNCTIONS
Functions : GN 1/1 trays washing, Triple filter, HTR, Double basket, Door clearance 415mm
PROGRAMMES
Programs : Boiler 85°C/Tank 60°C-1'10"; Boiler 85°C/Tank 60°C-1'30"; Boiler 71°C/Tank 60°C-2'; Boiler 85°C/Tank 60°C-2'30"; Boiler 71°C/Tank 60°C-2'10"; Boiler 85°C/Tank 60°C-4'10"
Drain and self cleaning cycle : Yes
Maximum baskets/hour : 40
Maximum plates/hour : 720
TECHNICAL FEATURES
Tank heating element : 2000 W
Boiler heating element : 6100 W
Wash pump : 700 W
Default connection : 5000 W
Electrical connection options : 230 V~ / 20 A / 4,5 kW / 50 Hz (NC)
Water consumption per cycle : 3,2 l
Water inlet pressure : 1-6 bar / 100-600 kPa
Warm water connection : Cold 15°C
Inlet water maximum temperature : 60°C
Max water hardness : 12°fH - 7°dH
INTERFACE
Panel : Easyline 2016
Display : 8 digit
On/off indicator : Yes
Low rinse aid alert : Yes
Low detergent alert : Yes
Cycle progress indicator : Yes
End of cycle indicator : Yes
Manual diagnostics : Yes
CONSTRUCTION
Tank : Deep drawn
Tank construction : Double skinned
Tank material : Stainless steel AISI 304
Tank filter : Stainless steel
Door : Double skinned
Back panel : Galvanized
Counter balanced door : Yes
Wash arm : Stainless steel AISI 304
Rinse arm : Stainless steel AISI 304
Door gasket : On 3 sides
Rack guides : Embossed low, telescopic up
Wash tank capacity:11 l
Boiler capacity : 6 l
Protection class : IPX4
Adjustable feet : 0-15 mm
Drain max. height : 600 mm
LOGISTIC INFORMATION
Dimensions : 600x600x820 mm
Packed width : 660 mm
Packaged depth : 700 mm
Height (mm) packed : 990 mm
Dimensions of the packed product (mm) : 990X660X700
Gross weight (kg) : 73
EQUIPMENT
Integral continuous water softener : Yes
Detergent (red) hose length : Yes, manual
Peristaltic detergent pump : Yes, electronic control
Detergent flow rate : 1.5 l/h
Peristaltic rinse aid pump : Yes, electronic control
Rinse aid (blue) hose length : Yes, manual
Soft Start : Yes
Rinse aid flow rate : 0.4 l/h
Boiler thermo stop : Yes
Cycle counter : Yes
Chemical dosing : gr/lt
Drain pump with 3 stage filter system : Yes
Rinse pump with H.T.R. system : Rinse pump with atmospheric boiler
Break tank : Yes
Partial water exchange in the wash tank via built-in drain pump : Yes
Automatic start : Yes
Chemical level probe : Yes, optional KITSONLIV
Double basket option : Yes
1/1GN tray washing option : Yes
